44

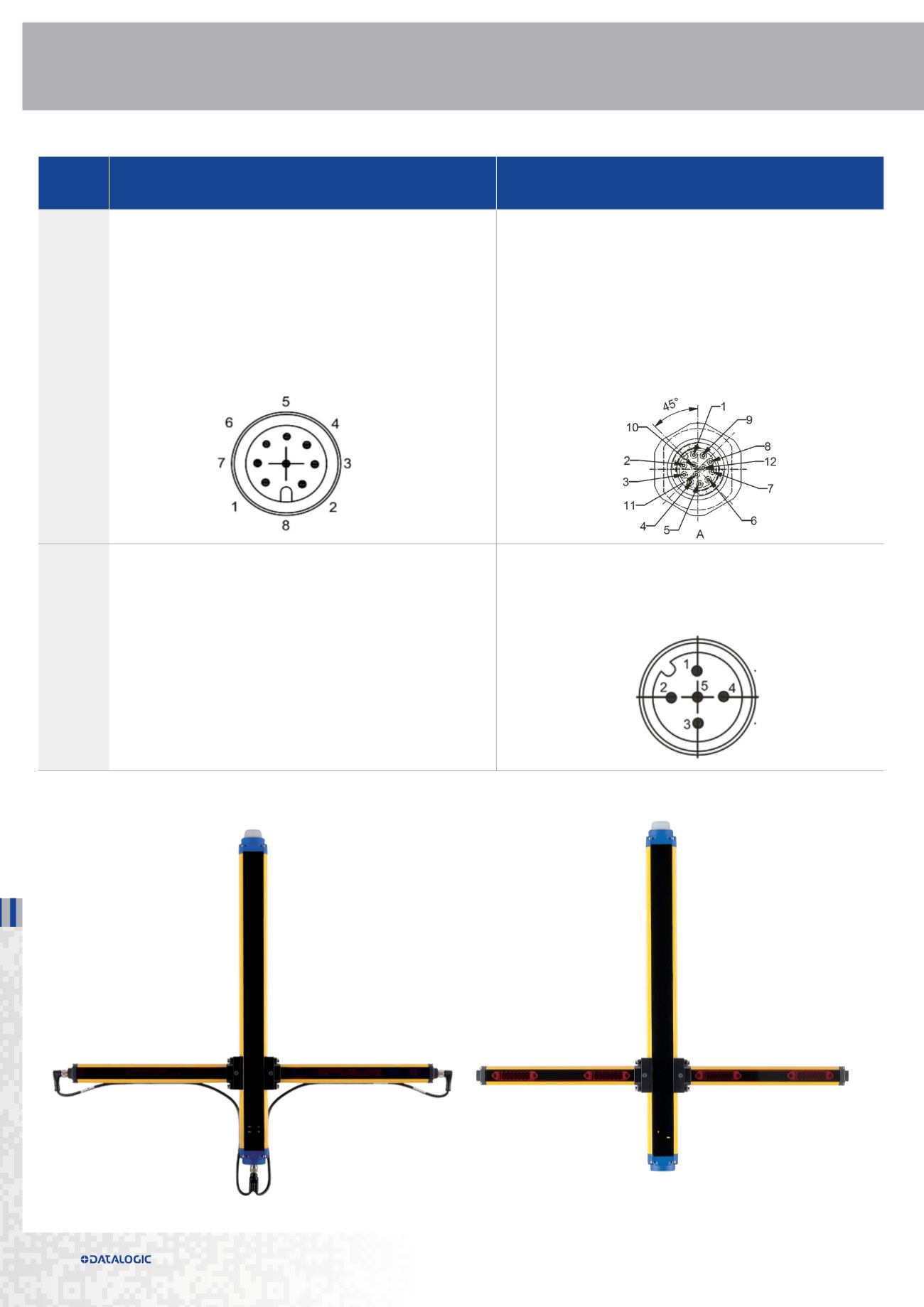

CONNECTORS
SG BODY REFLECTOR BASE
[ SG4-RBx-xxx-OO-E ]
SG BODY REFLECTOR MUTING
[ SG4-RBx-xxx-OO-W ]
[SG4-RBxL/T-xxx-OO-W]
ACTIVE UNIT
MAIN
CONNECTOR
M12, 8 poles, male
1 = white = RESET/RESTART/RESTART MODE
2 = brown = 24V
3 = green = EDM ENABLE
4 = yellow = EDM
5 = grey = OSSD1
6 = pink = OSSD2
7 = blue = 0V
8 = red = EARTH
M12, 12 poles, male
1 = brown = 24Vdc
2 = blue = 0 V
3 = white = RESET/RESTART/RESTART MODE
4 = green = OVERRIDE1
5 = pink = OSSD2
6 = yellow = EDM
7 = black = MUTING ENABLE
8 = grey = OSSD1
9 = red = OVERRIDE2
10 = violet = LAMP INPUT
11 = grey-pink = OVERRIDE STATUS
12 = red-blue = EARTH
ACTIVE UNIT
SECONDARY
CONNECTOR
---
M12, 5 poles, male
1 = brown = 24Vdc
2 = white = MUTING2
3 = blue = 0V
4 = black = MUTING1
---
SG BODY REFLECTOR BASE
SG BODY REFLECTOR MUTING
SAFETY SENSORS
�
