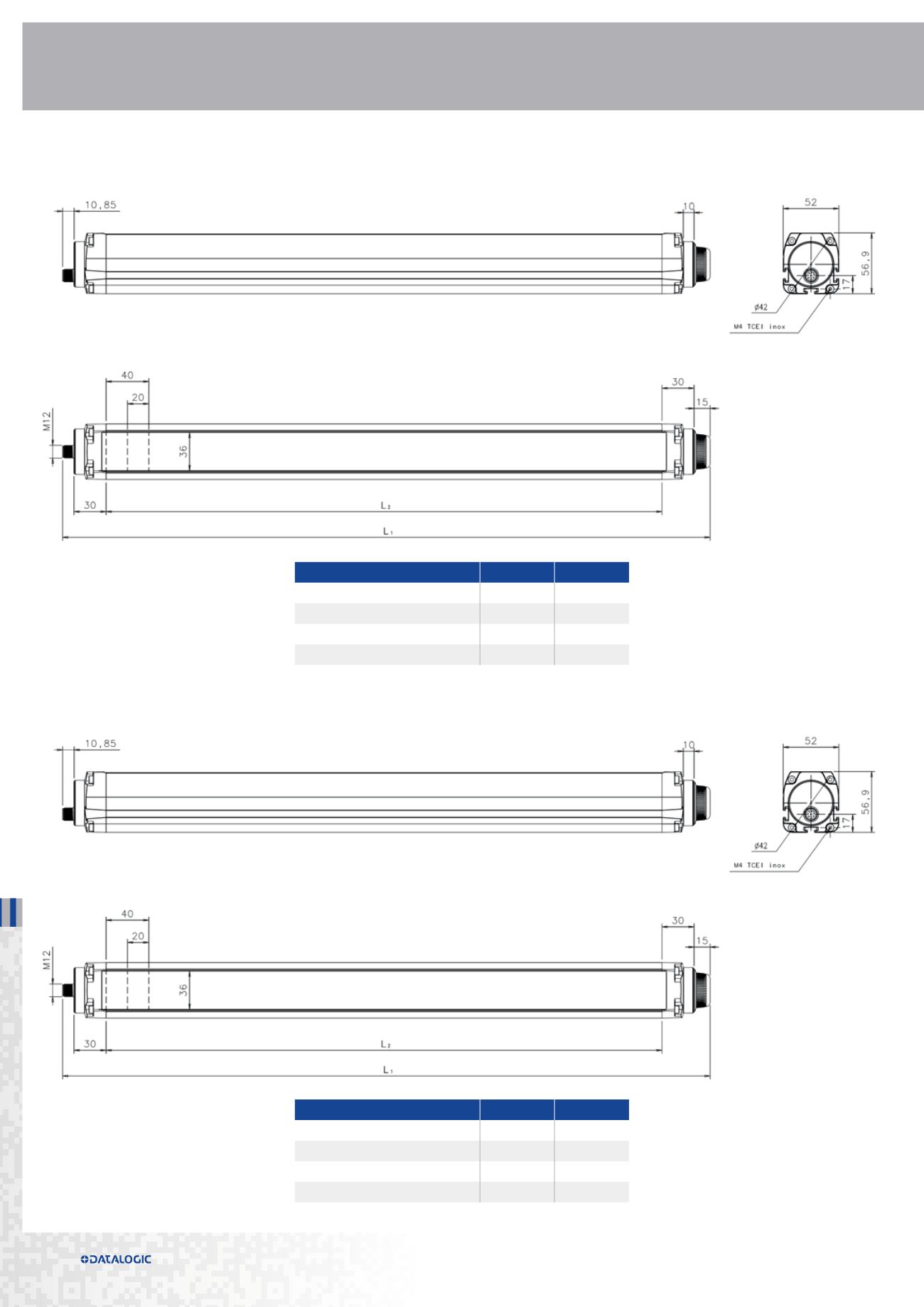

DIMENSIONS (mm)
SG BODY REFLECTOR BASE - ACTIVE UNIT
SG BODY REFLECTOR MUTING - ACTIVE UNIT
MODEL
L1 [mm]
L2 [mm]
SGx-RB2-050-OO-E
606,35
520,5
SGx-RB3-080-OO-E
906,35
820,5
SGx-RB4-090-OO-E
1006,35
920,5
SGx-RB4-120-OO-E
1306,35
1220,5
MODEL
L1 [mm]
L2 [mm]
SGx-RB2y-050-OO-W
609,35
520,5
SGx-RB3y-080-OO-W
909,35
820,5
SGx-RB4y-090-OO-W
1009,35
920,5
SGx-RB4y-120-OO-W
1309,35
1220,5
