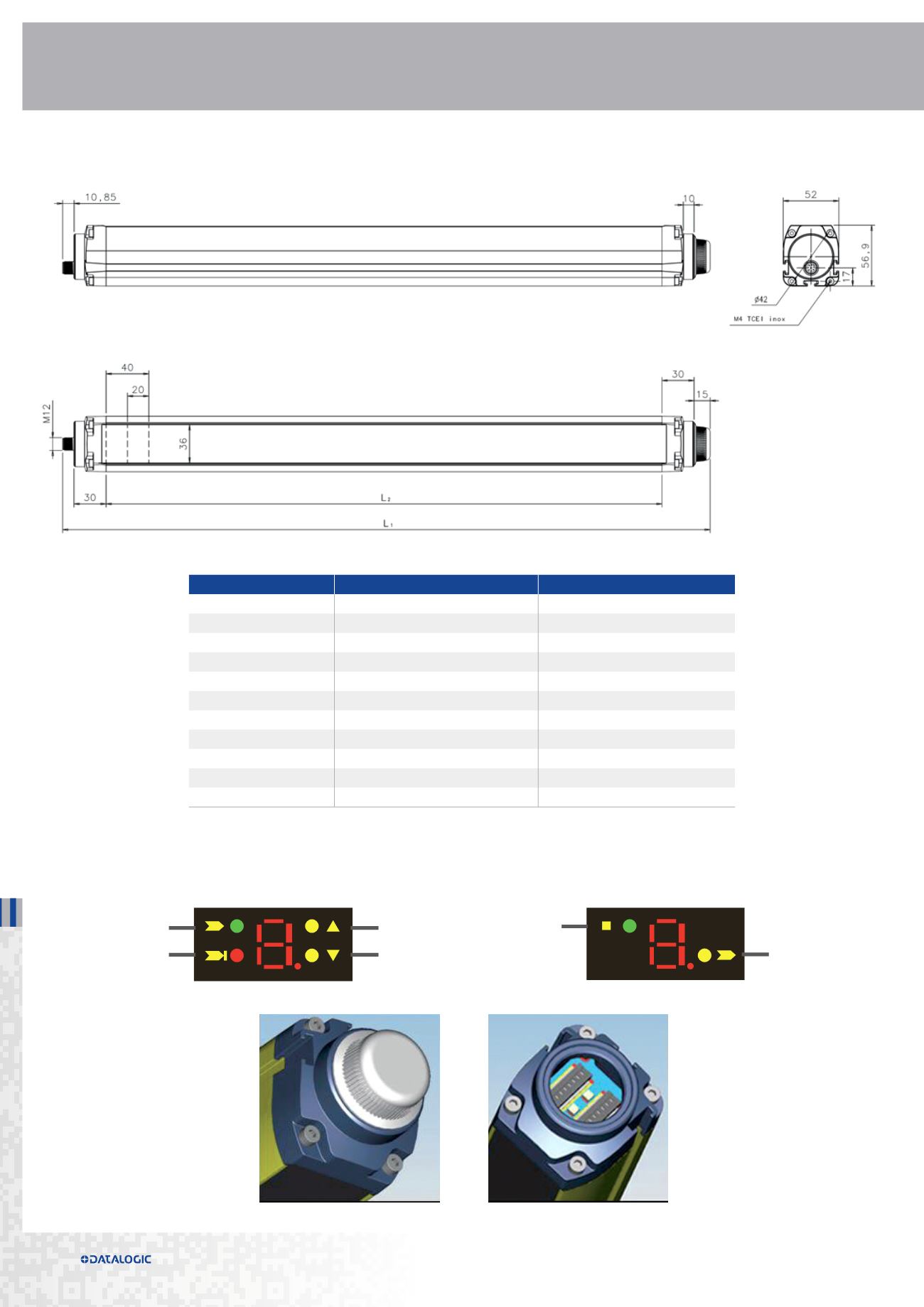

DIMENSIONS (mm)
MODEL L1 [mm] L2 [mm]
SGx-B2-050-OO-E 606,35 520,5
SGx-B3-080-OO-E 906,35 820,5
SGx-B4-090-OO-E 1006,35 920,5
SGx-B4-120-OO-E 1306,35 1220,5
SG4-40-060-OO-E 783,35 700,5
SG4-40-090-OO-E 1083,35 1000,5
SG4-40-120-OO-E 1383,35 1300,5
SGx-Byy2-050-OO-W-C 609,35 520,5
SGx-Byy3-080-OO-W-C 909,35 820,5
SGx-Byy4-090-OO-W-C 1009,35 920,5
SGx-Byy4-120-OO-W-C 1309,35 1220,5
INDICATORS
NORMAL
OPERATION LAST
POWER
ON
SYNC EMISSION SAFE
SG BODY BIG BASE
SG BODY BIG MUTING SAFETY SENSORS �
