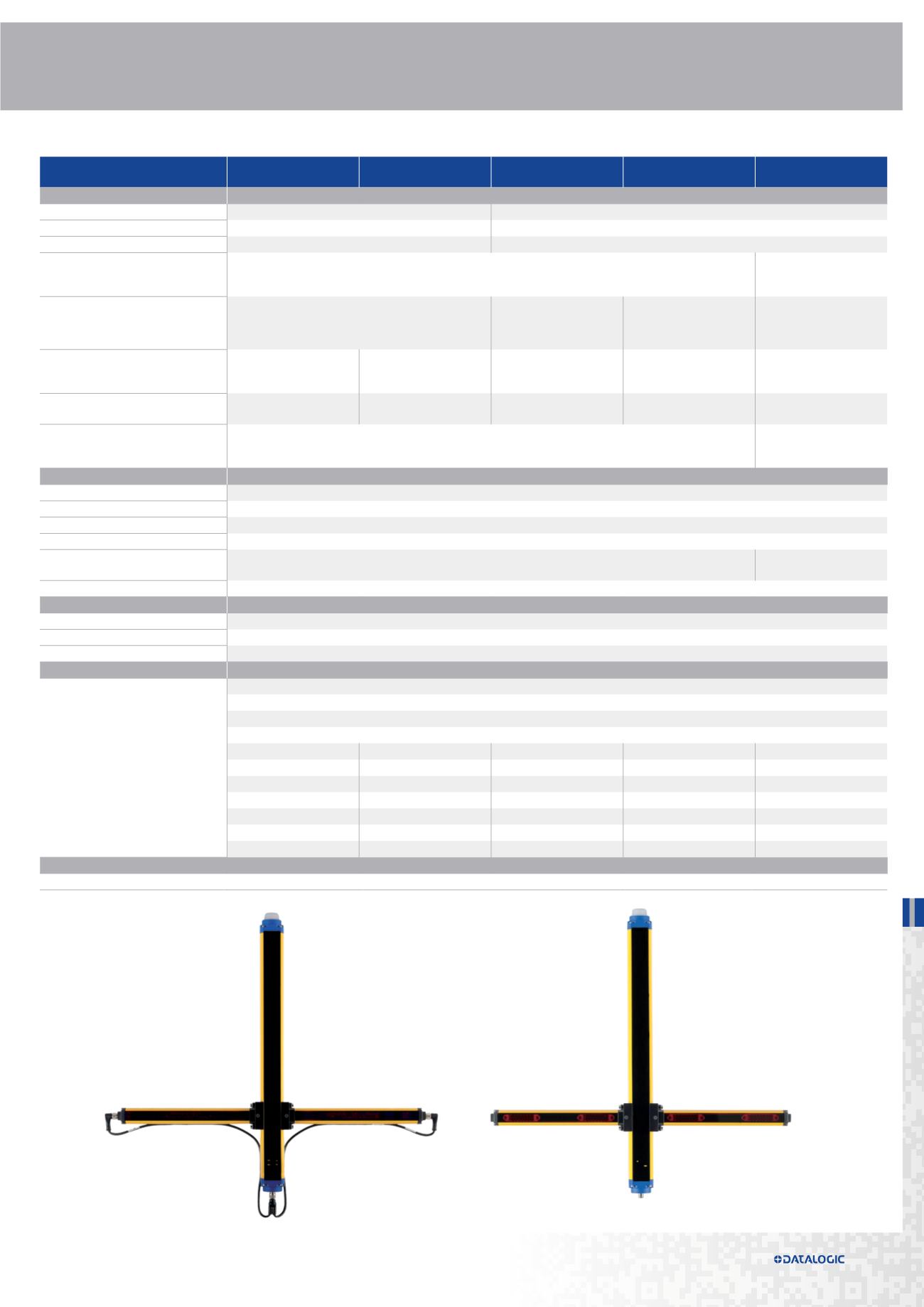

CHARACTERISTICS
SG2 BODY BIG BASE
[ SG2-Bx-xxx-OO-E ]
SG2 BODY BIG MUTING
[ SG2-Bxxx-xxx-OO-W-C ]
SG4 BODY BIG BASE
[ SG4-Bx-xxx-OO-E ]
SG4 BODY BIG MUTING
[ SG4-Bxxx-xxx-OO-W-C ]
SG4 LONG RANGE BASE
[ SG4-40-xxx-OO-E ]
GENERAL DATA
Type (EN61496-1)
2
4
PL (EN ISO 13849-1)
d
e
SIL (IEC 61508)
2
3
Resolution
319,75 mm (4 beams)
419,75 mm (3 and 4 beams)
519,75 mm (2 beams)
40 mm
Operating distance
0.5 … 60 m
6 … 60 m
0.5 … 30 m
(Short Range model)
6 … 60 m
(Long Range model)
6 … 60 m
Retroreflective muting arms
operating distance
(not included)
---
0.5 … 3 m
---
0.5 … 3 m
(Only for Short Range model)
---
Emitter-Receiver muting arms
operating distance
---
0.5 … 7 m
---
0.5 … 7 m
---
Protected height
500 mm (2 beams)
800 mm (3 beams)
900 mm or 1200 (4 beams)
660 mm
960 mm
1260 mm
ELECTRICAL DATA
Power supply (Vdd)
24 Vdc ± 20%
Outputs
2 PNP
Output current
0.5 A max/each output
Capacitive load
2,2 uF max at 25°C
Response time
11 ... 24 ms depending on model
A
20 … 24 ms
depending on model
A
Cables length (for power supply)
70 m max.
MECHANICAL AND ENVIRONMENTAL DATA
Operating temperature
0 …+55 °C
Humidity
15 … 95 % (no condensation)
Mechanical protection
IP 65 (EN 60529)
FUNCTIONS
Test input
Manual/Automatic restart
External Device Monitoring (EDM)
Coding selection with DIP-SW
---
T-Muting/L-Muting
---
T-Muting/L-Muting
---
---
Muting timeout: 10 min. or ∞
---
Muting timeout: 10 min. or ∞
---
---
Integrated muting lamp
Integrated muting lamp
---
---
Override
---
Override
---
---
Muting engable input
---
Muting engable input
---
---
Override status output
---
Override status output
---
---
Muting lamp output
---
Muting lamp output
---
NOTES
A
For detailed informations refer to related Product Datasheet or Manual
SAFETY SENSORS
�
SG BODY BIG BASE
SG BODY BIG MUTING
