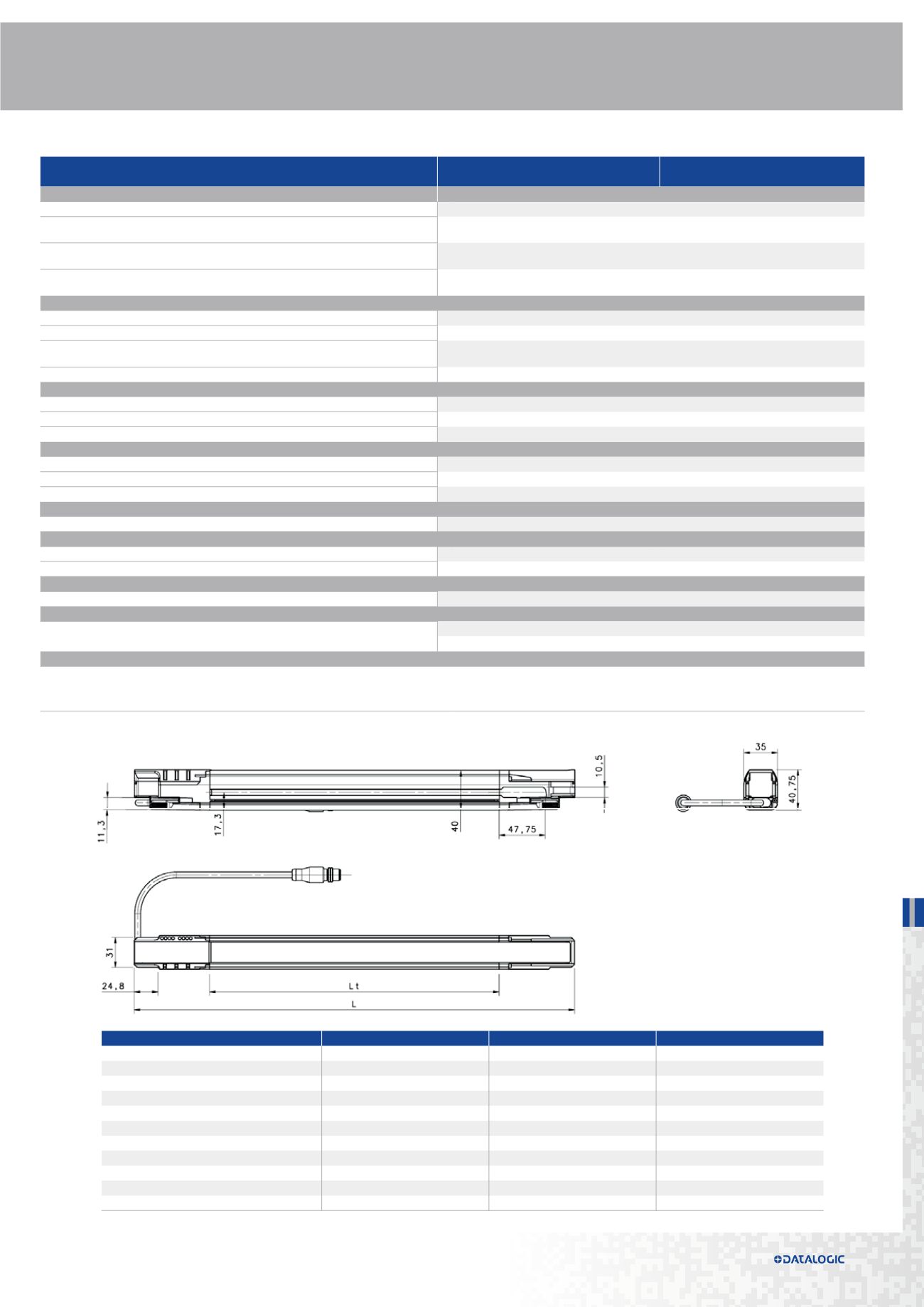

53
ACCESSORIES
SG2 MUTING
[ SG2-30-xxx-OO-W ]
SG4 EXTENDED
[ SG4-xx-xxx-OO-P ]
BRACKETS
Standard angled brackets (outfit)
ST-KSTD
Antivibration support (4 pcs/6 pcs)
A
ST-K4AV
ST-K6AV
Plastic brackets (4 pcs/6 pcs)
A
ST-KP4MP
ST-KP6MP
Orientable brackets (4 pcs/6 pcs)
A
ST-K4OR
ST-K6OR
STANDS
Protective Stands
SG-PSB series
Stand Plate for SG-PSB
SG-P
Protective Stands Mounting Brackets (4 pcs/6 pcs)
A
ST-PS4-SG-SE
ST-PS6-SG-SE
Floor columns
SE-S Series
MIRRORS
Deviating Mirrors
SG-DM Series
Deviating Mirrors mounting kit for SG-PSB
ST-PS-DM
Mirror Mounting Bracket
ST-DM
SAFETY UNITS
Safety Unit
SE-SR2
EDM Relay Box
B
CS ME-03VU24-Y14
Safety control unit for single beams and SLC
SG-BWS-T4-MT
ALIGNMENT TOOL
LASER Pointer
SG-LP
COMMUNICATION TOOLS
Ethernet Adaptor (Dongle)
---
SG4-DONGLE
Ethernet Cable
---
CAB-ETH-M01
CONFIGURATION SOFTWARE
Monitoring and Programming Software
C
SG EXTENDED Graphic User Interface
C
MUTING ACCESSORIES
External muting lamps
LMS series
Muting arms, brackets and cables
See page 76
NOTES
A
Use 6 brackets for light curtains with length ≥ 1200 mm
B
When using EDM Relay Box, connect EDM input, and be sure EDM function is active on the safety light curtain
C
SG EXTENDED GUI is available from DATALOGIC website
SAFETY SENSORS
�
SG2 MUTING
SG4 EXTENDED
SG2 MUTING
SG4 EXTENDED
Lt (mm)
L (mm)
SG2-xx-030-OO-W
SG4-xx-030-OO-P
150
306,3
SG2-xx-045-OO-W
SG4-xx-045-OO-P
300
456,3
SG2-xx-060-OO-W
SG4-xx-060-OO-P
450
606,3
SG2-xx-075-OO-W
SG4-xx-075-OO-P
600
756,3
SG2-xx-090-OO-W
SG4-xx-090-OO-P
750
906,3
SG2-xx-105-OO-W
SG4-xx-105-OO-P
900
1056,3
SG2-xx-120-OO-W
SG4-xx-120-OO-P
1050
1206,3
SG2-xx-135-OO-W
SG4-xx-135-OO-P
1200
1356,3
SG2-xx-150-OO-W
SG4-xx-150-OO-P
1350
1506,3
SG2-xx-165-OO-W
SG4-xx-165-OO-P
1500
1656,3
SG2-xx-180-OO-W
SG4-xx-180-OO-P
1650
1806,3
DIMENSIONS (mm)
