LIGHT CURTAINS

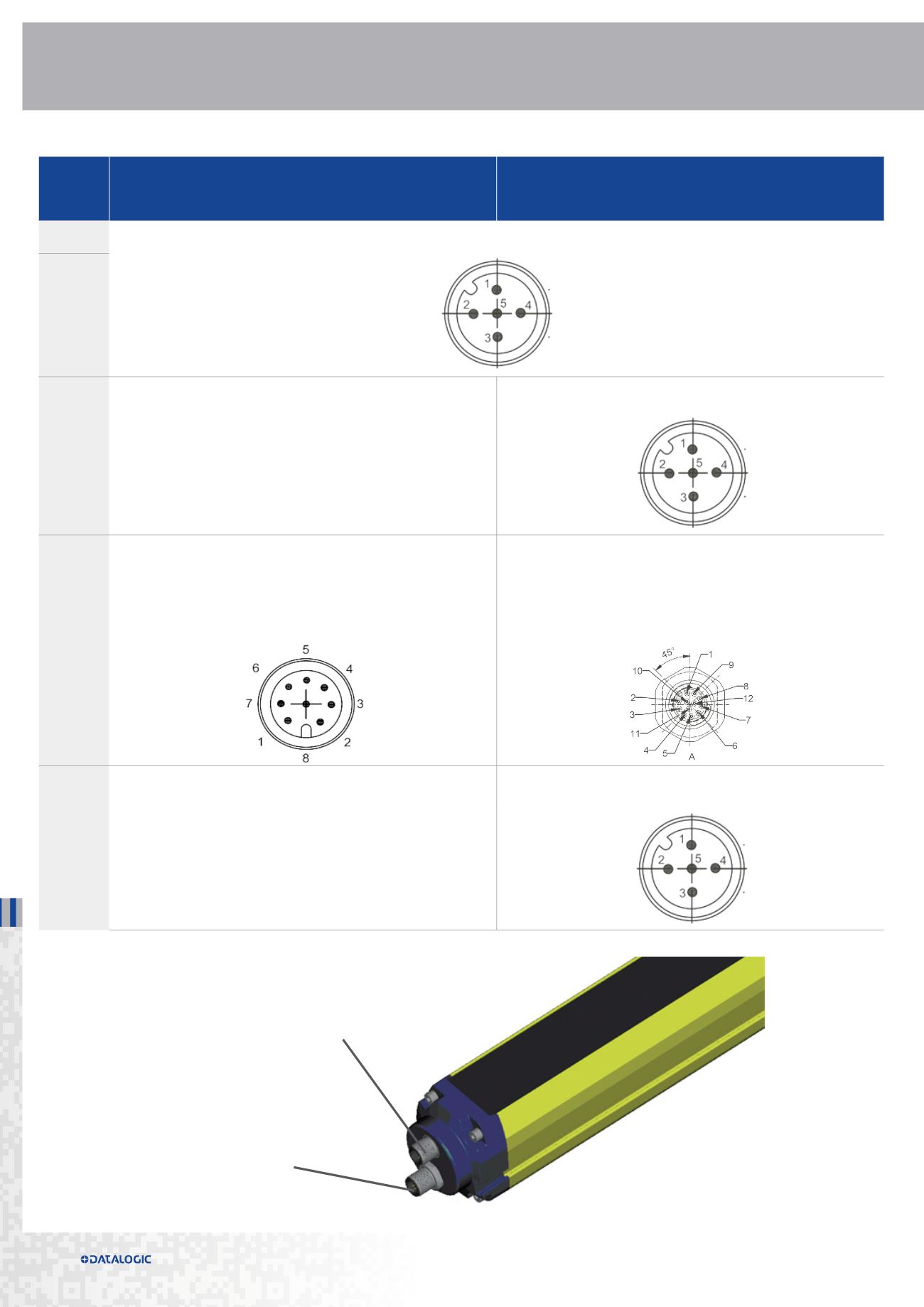

CONNECTIONS
SG BODY BIG BASE
[ SG2/4-Bx-xxx-OO-E ]
SG4 LONG RANGE BASE
[ SG4-40-xxx-OO-E ]
SG BODY BIG MUTING
[ SG2/4-Bxxx-xxx-OO-W-C ]
M12, 5 poles, male
1 = brown = 24Vdc; 2 = white = TEST; 3 = blue = 0V; 4 = black = EARTH
EMITTER
MAIN
CONNECTOR
EMITTER
SECONDARY
CONNECTOR
---
M12, 5 poles, male
1 = brown = 24Vdc; 3 = blue = 0V
---
RECEIVER
MAIN
CONNECTOR
M12, 8 poles, male
1 = white = RESET/RESTART/RESTART MODE;
2 = brown = 24Vdc; 3 = green = EDM ENABLE;
4 = yellow = EDM; 5 = grey = OSSD1; 6 = pink = OSSD2;
7 = blue = 0V; 8 = red = EARTH
M12 12-pole connector
1 = Brown = 24Vdc; 2 = Blue = 0V;
3 = White = RESET/RESTART/RESTART MODE;
4 = Green = OVERRIDE 1; 5 = Pink = OSSD 2;
6 = Yellow = EDM; 7 = Black = MUTING ENABLE;
8 = Grey = OSSD 1; 9 = Red = OVERRIDE 2;
10 = Violet = LAMP OUTPUT;
11 = Grey-Pink = OVERRIDE STATUS; 12 = Red-Blue = EARTH
RECEIVER
SECONDARY
CONNECTOR
---
M12, 5 poles, male
1 = brown = 24Vdc; 2 = white = MUTING2;
3 = blue = 0V; 4 = black = MUTING 1
---
SECONDARY CONNECTOR
MAIN CONNECTOR
SG BODY BIG BASE
SG BODY BIG MUTING
