54
700
179
164
89,5
35
349,5
378
164
44,1
40
164
643,5

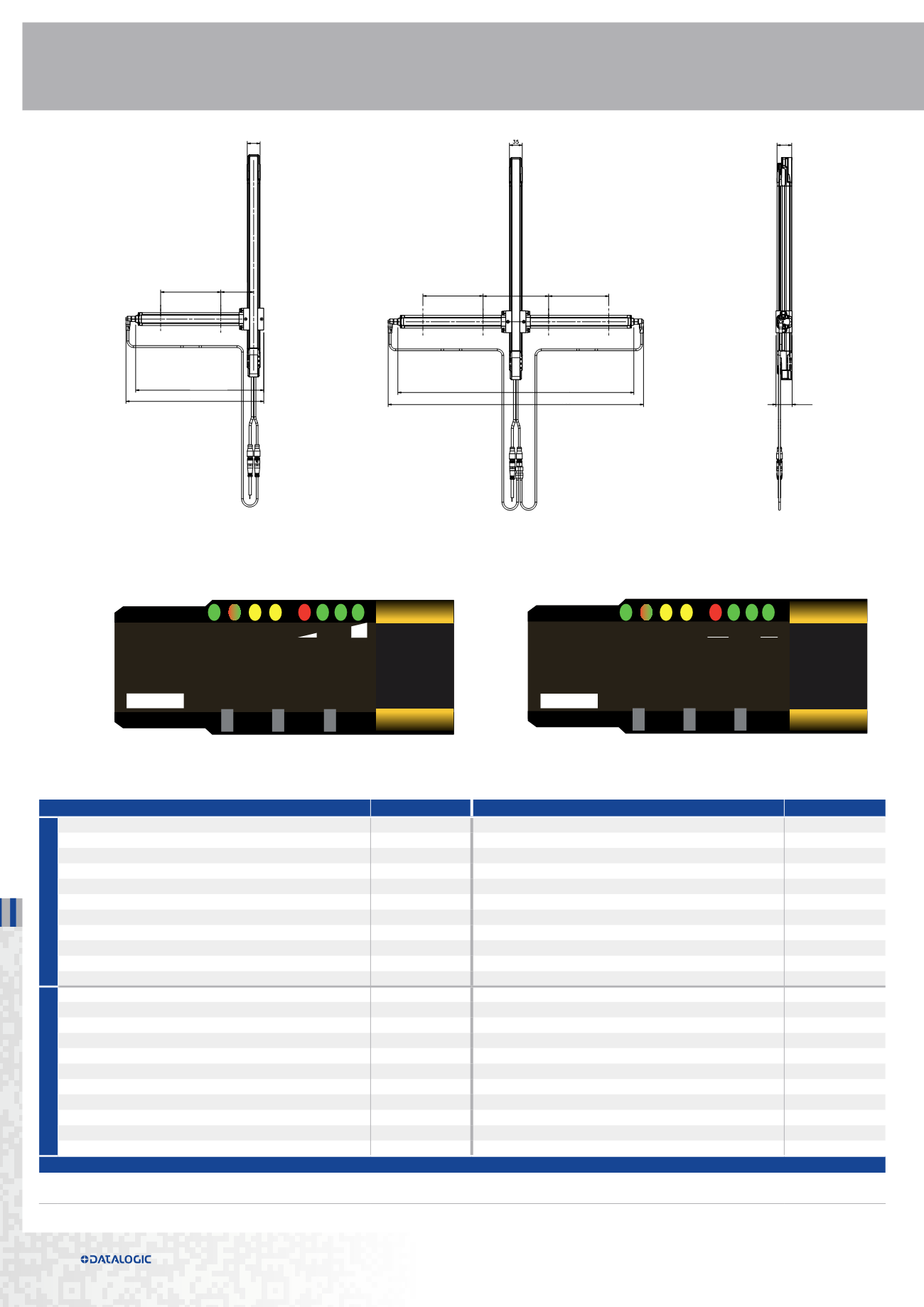

SG2 MUTING
SG4 EXTENDED
SAFETY SENSORS
�
AVAILABLE MODELS AND ORDER CODES
SG2 MUTING [ SG2-30-xxx-OO-W ]
Order Number
SG4 EXTENDED [ SG4-xx-xxx-OO-P ]
Order Number
Fingerprotection
---
SG4-14-030-OO-P
957901240
---
SG4-14-045-OO-P
957901250
---
SG4-14-060-OO-P
957901260
---
SG4-14-075-OO-P
957901270
---
SG4-14-090-OO-P
957901280
---
SG4-14-105-OO-P
957901290
---
SG4-14-120-OO-P
957901300
---
SG4-14-135-OO-P
957901310
---
SG4-14-150-OO-P
957901320
---
SG4-14-165-OO-P
957901330
---
SG4-14-180-OO-P
957901340
Handprotection
SG2-30-030-OO-W
957801700
SG4-30-030-OO-P
957901350
SG2-30-045-OO-W
957801710
SG4-30-045-OO-P
957901360
SG2-30-060-OO-W
957801720
SG4-30-060-OO-P
957901370
SG2-30-075-OO-W
957801730
SG4-30-075-OO-P
957901380
SG2-30-090-OO-W
957801740
SG4-30-090-OO-P
957901390
SG2-30-105-OO-W
957801750
SG4-30-105-OO-P
957901400
SG2-30-120-OO-W
957801760
SG4-30-120-OO-P
957901410
SG2-30-135-OO-W
957801770
SG4-30-135-OO-P
957901420
SG2-30-150-OO-W
957801780
SG4-30-150-OO-P
957901430
SG2-30-165-OO-W
957801790
SG4-30-165-OO-P
957901440
SG2-30-180-OO-W
957801800
SG4-30-180-OO-P
957901450
NOTES
A
The light curtain is sold without pigtail cables: they must be ordered separately for Transmitter and Receiver. In case of SG4 EXTENDED, the choice of the Receiver pigtail determi-
nes in Muting configuration or Blanking configuration. For cascade configurations, other cables are avilable to connect the cascaded units: refer to the accessories table.
INDICATORS
RECEIVER
CONFIRM SELECT ENABLE
LEVEL
ACM
EDM
OSSD
PWR
EMITTER
CONFIRM SELECT ENABLE
LR
SR
TST
PWR
CODE
