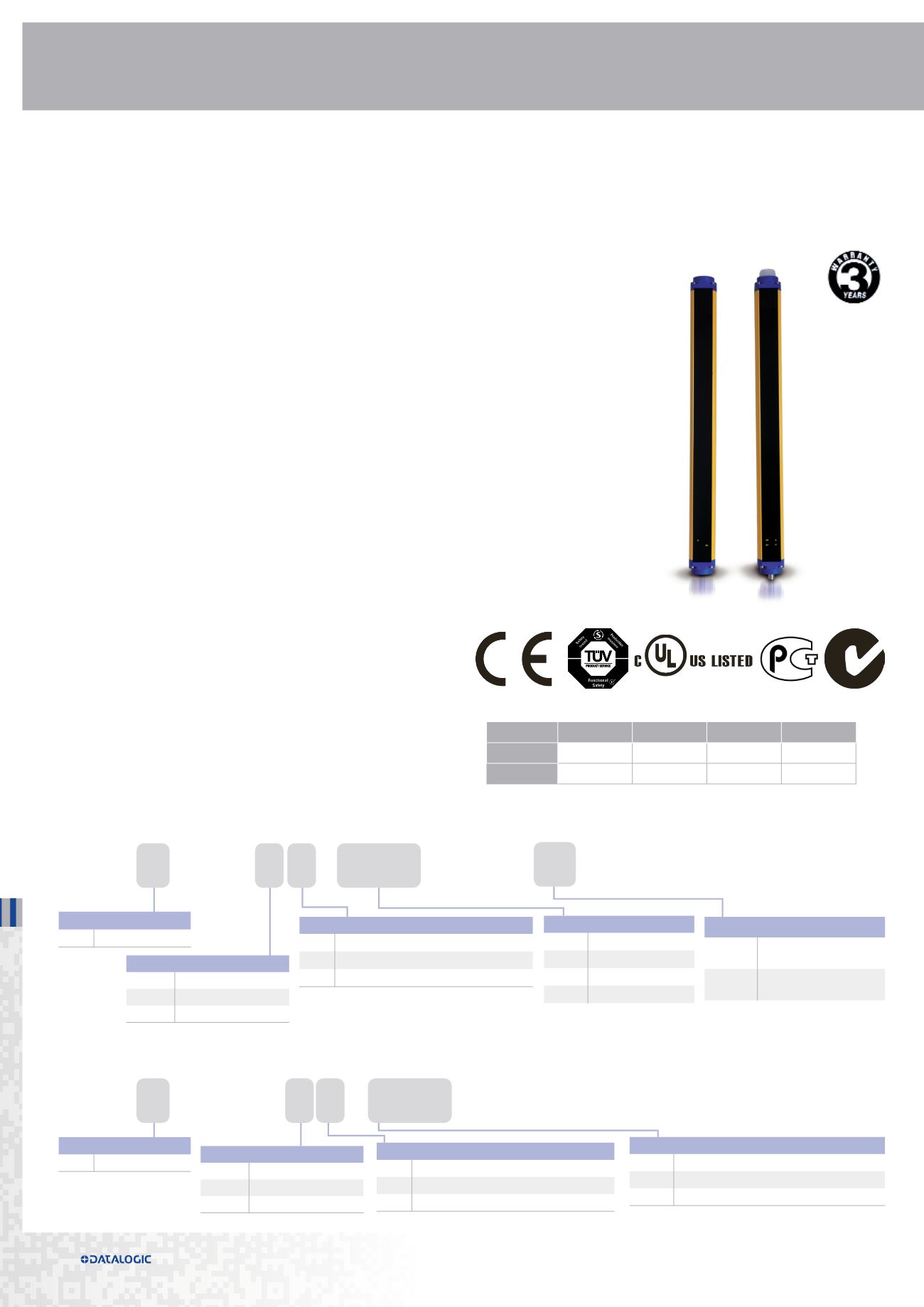

RG_Safety_EN - page 42

42
SG 4 -RB 2 L - 050 -OO- W
SG 4 -RDB 2 L - 090
One active and one passive unit to reduce
wiring and installation costs
Robust housing for harsh environments
Easy installation and alignment
Reflective muting arms included in L and T
muting version
All advanced features associated to muting
function
• 2, 3, 4 beams for body protection
• Controlled heights 500, 800, 900 and 1200 mm
• Up to 8 m operating distance
• Simple configuration through DIP switches
• Integrated muting lamp (muting models)
• Anti-interference coding
• External muting enable signal
• Edged or triggered muting dependent override
SG BODY REFLECTOR BASE
SG BODY REFLECTOR MUTING
Finger Hand Arm Body
Type 2
Type 4 •
TYPE
4 Type 4
TYPE
4 Type 4
BEAMS AND RANGE
2 2 Beams
3 3 Beams
4 4 Beams
BEAMS AND RANGE
2 2 Beams
3 3 Beams
4 4 Beams
VERSION
E Base: without integratedmuting function
W Muting: with integratedmuting function
MUTING ARMS
--- Linear version: no muting arms included
L L muting arms included
T T muting arms included
MUTING ARMS
--- Linear version: no muting arms included
L L muting arms included
T T muting arms included
MONITORED HEIGHT
050 500 mm (2 beams)
080 800 mm (3 beams)
090 900 mm (4beams)
120 1200 mm (4 beams)
Active unit
MONITORED HEIGHT
--- 500 mm (2 beams) or 800 mm (3 beams)
090 900 mm (4 beams)
120 1200 mm (4 beams)
SAFETY SENSORS
Passive unit
