RG_Safety_EN - page 30

30

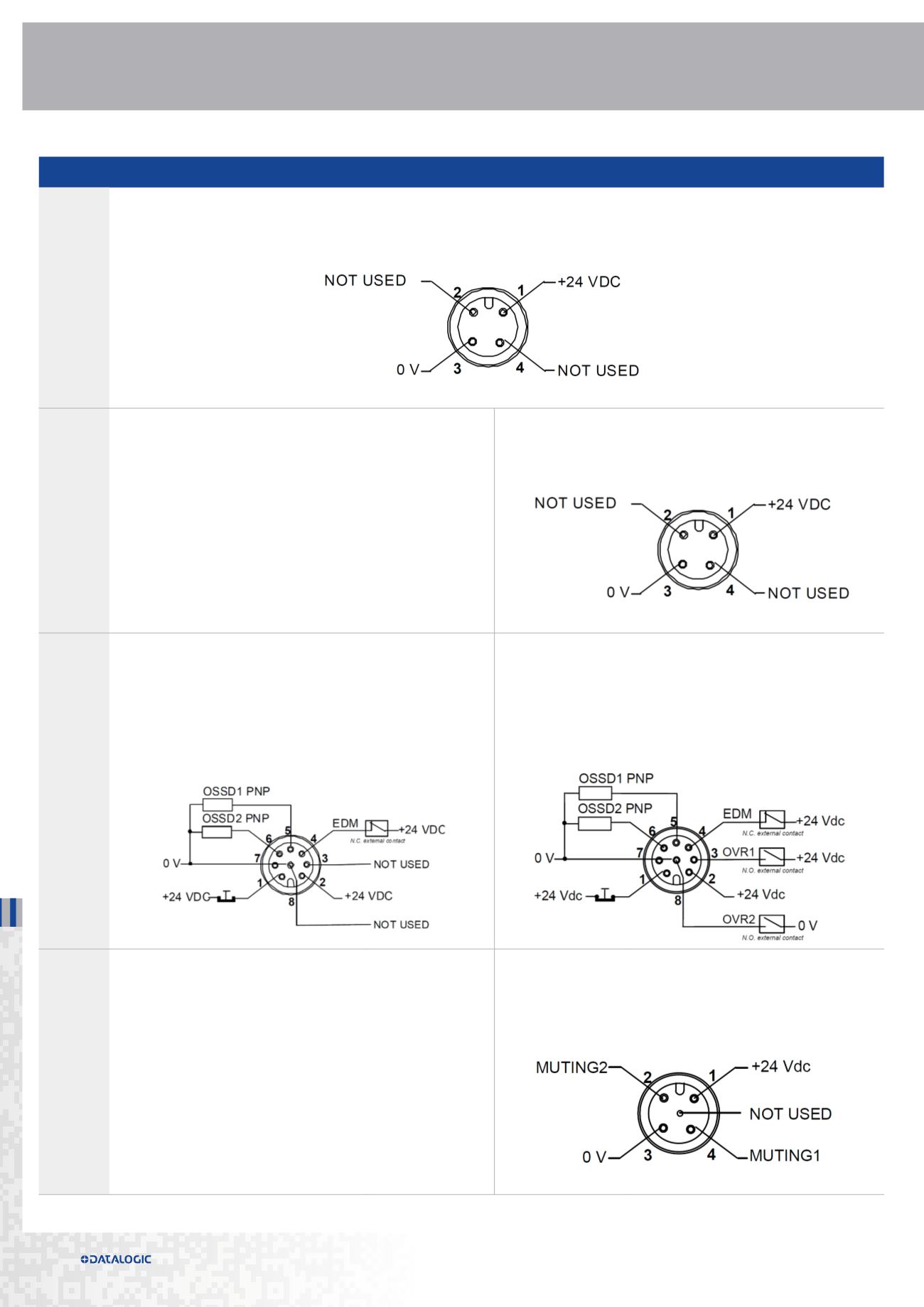

CONNECTIONS
SG2 BODY COMPACT BASE
[ SG2-Sx-xxx-PP-E ]
SG4 BODY COMPACT BASE
[ SG4-Sx-xxx-PP-E ]
SG2 BODY COMPACT MUTING
[ SG2-S/L/Tx-xxx-PP-W ]
SG4 BODY COMPACT MUTING
[ SG4-S/L/Tx-xxx-PP-W ]
EMITTER
MAIN
CONNECTOR
M12, 4 poles, male
1 = Brown = 24Vdc
3 = Blue = 0 V
EMITTER
SECONDARY
CONNECTOR
---
M12, 5 poles, male
1 = Brown = 24 Vdc
3 = Blue = 0 V
RECEIVER
MAIN
CONNECTOR
M12, 8 poles, male
1 = white = TEST/START
2 = brown = 24 Vdc
4 = yellow = EDM
5 = grey = OSSD 1
6 = pink = OSSD 2
7 = blue = 0V
M12, 8 poles, male
1 = white = TEST/START
2 = brown = 24 VDC
3 = green = OVERRIDE 1
4 = yellow = EDM
5 = grey = OSSD 1
6 = pink = OSSD 2
7 = blue = 0V
8 = red = OVERRIDE 2
EMITTER
SECONDARY
CONNECTOR
---
M12, 5 poles, male
1 = Brown = 24 Vdc
2 = White = MUTING2
3 = Blue = 0 V
4 = Black = MUTING1
SG BODY COMPACT BASE
SG BODY COMPACT MUTING SAFETY SENSORS �
