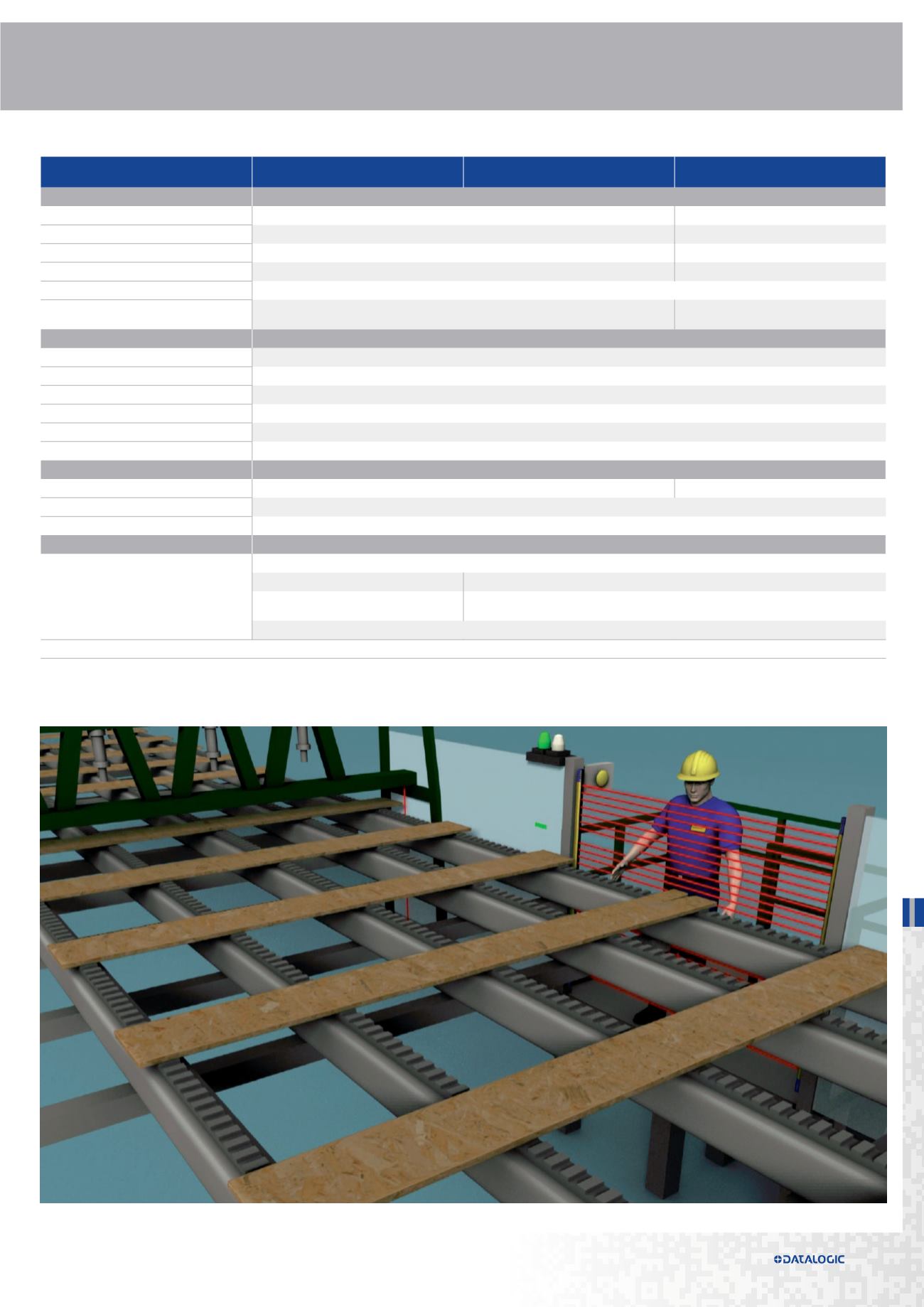

SG2BASE
[ SG2-xx-xxx-OO-X ]
SG2 EXTENDED
[ SG2-xx-xxx-OO-E-C ]
SG4 BASE
[ SG4-xx-xxx-OO-E ]
GENERAL DATA
Type (EN61496-1)
2
4
PL (EN ISO 13849-1)
d
e
SIL (IEC 61508)
2
3
Resolution
30 - 50 - 90 mm
14 - 30 mm
Protected height
150 ...1800 mm (with 150 mm steps)
Operating distance
0.2 …19 m
0.2 … 6 m (resolution 14 mm)
0.2 …19 m (resolution 30 mm)
ELECTRICAL DATA
Power supply (Vdc)
24 Vdc ± 20
Outputs
2 PNP
Output current
0.5 A max/each output
Capacitive load
2.2 uF @ 24Vdc max
Response time
8 ... 19 ms depending on model
A
Cables length (for power supply)
50 m max
MECHANICAL AND ENVIRONMENTAL DATA
Operating temperature
-10 …+55 °C
0 …+55 °C
Humidity
15 … 95 % (no condensation)
Mechanical protection
IP 65 (EN 60529)
FUNCTIONS
Test input
Automatic restart
Manual/Automatic restart
External Device Monitoring (EDM)
Selectable External Device Monitoring (EDM)
Selectable Operating Distance
A
For detailed informations refer to related Product Datasheet or Manual
CHARACTERISTICS
SAFETY SENSORS
�
SG2 BASE
SG2 EXTENDED
SG4BASE
