RG_Safety_EN - page 25

25

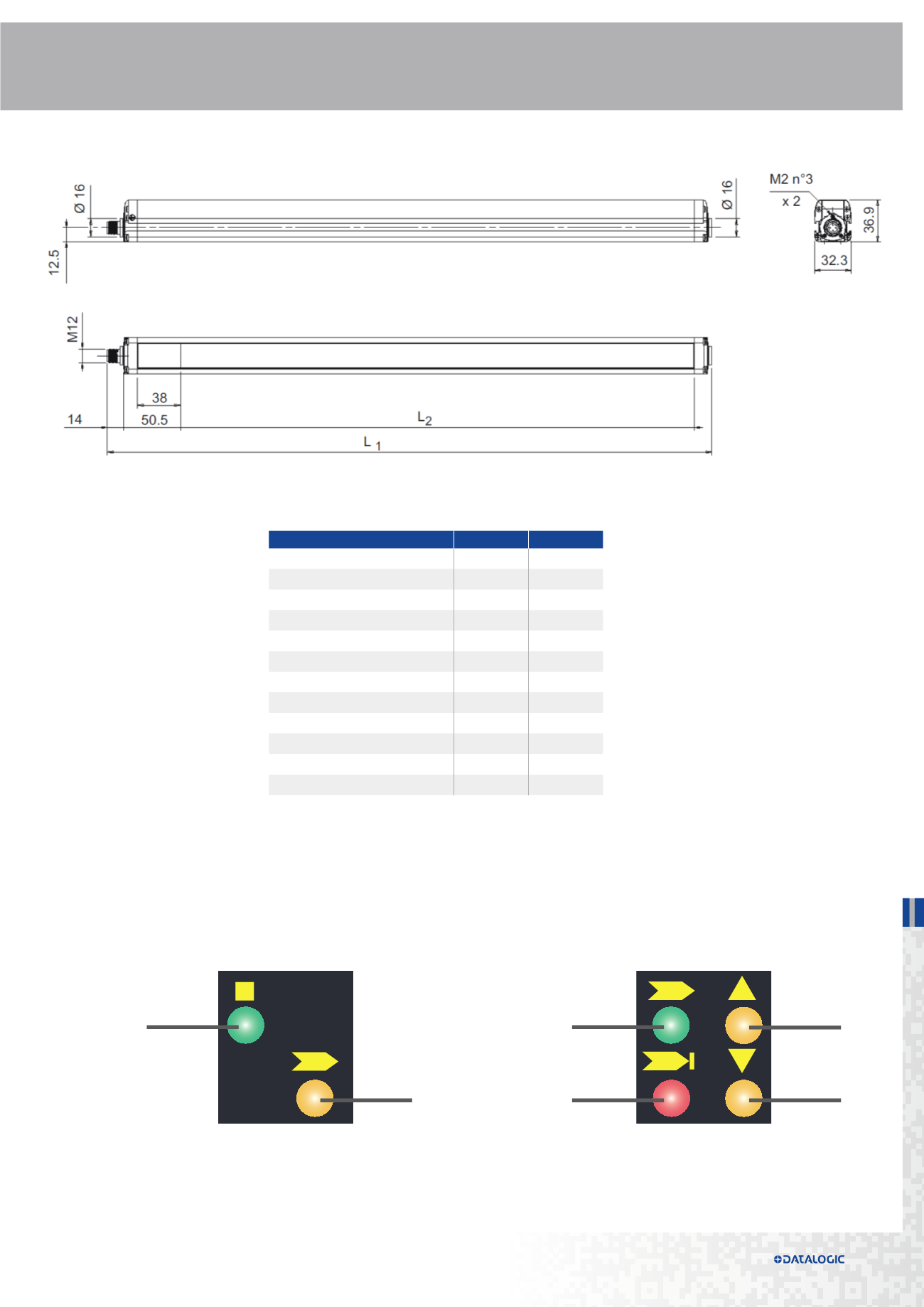

DIMENSIONS (mm)
Model L1 (mm) L2 (mm)
SGx-yy-150-OO-kkk 233.3 153.3
SGx-yy-030-OO-kkk 383.2 303.2
SGx-yy-045-OO-kkk 533.2 453.3
SGx-yy-060-OO-kkk 683.2 603.2
SGx-yy-075-OO-kkk 833.2 753.3
SGx-yy-090-OO-kkk 983.2 903.2
SGx-yy-105-OO-kkk 1133.2 1053.2
SGx-yy-120-OO-kkk 1283.3 1203.3
SGx-yy-135-OO-kkk 1433.2 1353.2
SGx-yy-150-OO-kkk 1583.3 1503.3
SGx-yy-165-OO-kkk 1733.3 1653.3
SGx-yy-180-OO-kkk 1883.3 1803.3
INDICATORS
Emitter
NORMAL OP.
Receiver
NORMAL OP. LAST
SAFE (BREAK) SYNC ON
SAFETY SENSORS �
SG2 BASE
SG2 EXTENDED
SG4BASE
