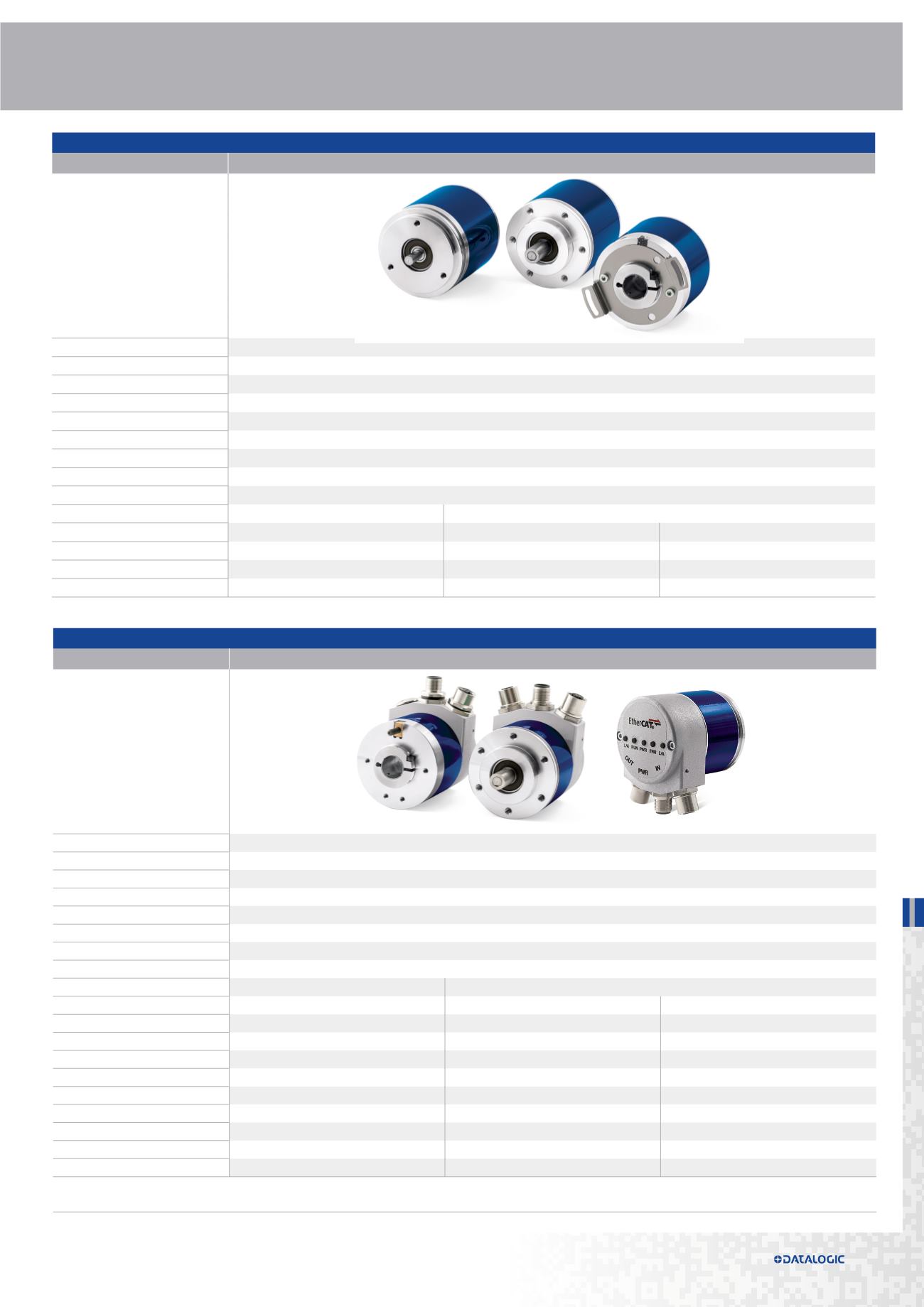

11
MULTI-TURN - SSI®
AMT58
Power supply
7.5-34 Vdc
Resolution
13 x 12 bit = up to 8192 CPR x 4096 turns
Output code
GRAY
Output circuit
Serial Synchronous Interface SSI®
Connection
cable 1.5m or connector M12 or M23
Case diameter
Ø 58 mm
Case material
anticorodal aluminium, UNI EN AW-6082
Flange material
anticorodal aluminium, UNI EN AW-6082
Shaft material
stainless steel, non-magnetic - UNI EN 4305
Shaft type
hollow shaft
solid shaft
Shaft diameter
○
Ø 15 mm
●
Ø 6 mm
●
Ø 10 mm
Multi-turn / cable
AMT58-H15-13x12-C15
AMT58-S06-13x12-C15
AMT58-S10-13x12-C15
Multi-turn / M12
AMT58-H15-13x12-M12
AMT58-S06-13x12-M12
AMT58-S10-13x12-M12
Multi-turn / M23
AMT58-H15-13x12-M23
AMT58-S06-13x12-M23
AMT58-S10-13x12-M23
MULTI-TURN - FIELDBUS
AMT58 FIELDBUS
Power supply
10-30 Vdc
Resolution
13 x 12 bit / 13 x 14 bit / 16 x 14 bit
Output circuit
Fieldbus interface module
Connection
M12 connectors
Case diameter
Ø 58 mm
Case material
anticorodal aluminium, UNI EN AW-6082
Flange material
anticorodal aluminium, UNI EN AW-6082
Shaft material
stainless steel, non-magnetic - UNI EN 4305
Shaft type
hollow shaft
solid shaft
Shaft diameter
○
Ø 15 mm
●
Ø 6 mm
●
Ø 10 mm
Encoder base unit*
AMT58-H15-16x14-FBUS
AMT58-S06-16x14-FBUS
AMT58-S10-16x14-FBUS
CANopen® module*
with AMT58-FBUS-CB
with AMT58-FBUS-CB
with AMT58-FBUS-CB
Devicenet module*
with AMT58-FBUS-DN
with AMT58-FBUS-DN
with AMT58-FBUS-DN
Profibus-DP module*
with AMT58-FBUS-PB
with AMT58-FBUS-PB
with AMT58-FBUS-PB
Canopen integrated**
AMT58-H15-13x12-CB
-
AMT58-S10-13x12-CB
Devicenet integrated**
AMT58-H15-13x12-DN
-
AMT58-S10-13x12-DN
Ethercat integrated**
AMT58-H15-13x14-EC
-
AMT58-S10-13x14-EC
Profibus integrated**
AMT58-H15-13x12-PB
-
AMT58-S10-13x12-PB
Profinet integrated**
AMT58-H15-13x14-PN
-
AMT58-S10-13x14-PN
* The encoder base unit must be ordered with the Fieldbus interface module
** Includes the encoder base unit and the integrated Fieldbus interface
AMT
58
AMT
58
FIELDBUS
