incremental ENCODERS
SELECTION AND LINE OVERVIEW
LINE AND CASE DIAMETER
SHAFT TYPE AND DIAMETER
RESOLUTION
CONNECTION
ENC41 = incremental Ø41
H06 = hollow Ø6mm
0100 = 100 PPR
C15 = cable 1.5m
ENC58 = incremental Ø58
H14 = hollow Ø14mm
0360 = 360 PPR
M12 = M12 connector
H15 = hollow Ø15mm
0500 = 500 PPR
M23 = M23 connector
S06 = solid Ø6mm
1000 = 1000 PPR
1024 = 1024 PPR
2000 = 2000 PPR
2048 = 2048 PPR
2500 = 2500 PPR
4096 = 4096 PPR
5000 = 5000 PPR
10000 = 10000 PPR
PROG = programmable

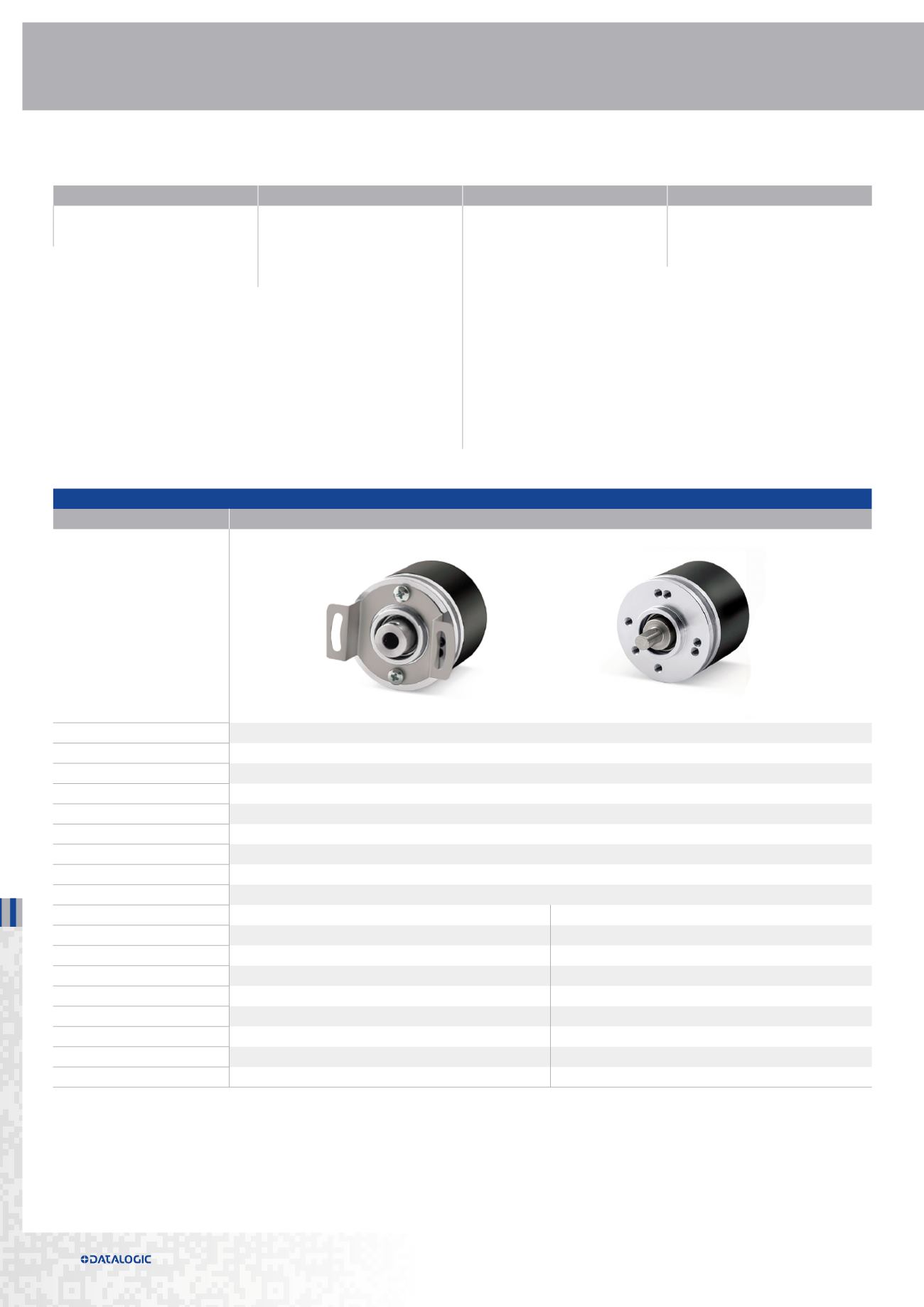

COMPACT BASIC LINE
ENC41
Power supply
5-30 Vdc
Resolution
up to 4096 pulse per revolution (PPR)
Output signals
AB0 and /A/B/0
Output circuit
Smart Push-Pull & Line Driver
Connection
cable 1.5m
Case diameter
Ø 40.5 mm
Case material
fibre glass epoxy resin
Flange material
anticorodal aluminium, UNI EN AW-6082
Shaft material
stainless steel, non-magnetic, UNI EN 4305
Shaft type
hollow shaft
solid shaft
Shaft diameter
○
Ø 6 mm
●
Ø 6 mm
100 PPR / cable
ENC41-H06-0100-C15
ENC41-S06-0100-C15
360 PPR / cable
ENC41-H06-0360-C15
ENC41-S06-0360-C15
500 PPR / cable
ENC41-H06-0500-C15
ENC41-S06-0500-C15
1000 PPR / cable
ENC41-H06-1000-C15
ENC41-S06-1000-C15
1024 PPR / cable
ENC41-H06-1024-C15
ENC41-S06-1024-C15
2048 PPR / cable
ENC41-H06-2048-C15
ENC41-S06-2048-C15
4096 PPR / cable
ENC41-H06-4096-C15
ENC41-S06-4096-C15
