ABSOLUTE ENCODERS
SELECTION AND LINE OVERVIEW
LINE AND CASE DIAMETER
SHAFT TYPE AND DIAMETER
Res. CPR x turns (bit)
CONNECTION
AST58 = single-turn Ø58
H15 = hollow Ø15mm
13x01 = 8192 x 1
C15 = cable 1.5m
AMT58 = multi-turn Ø58
S06 = solid Ø6mm
13x12 = 8192 x 4096
M12 = M12 connector
S10 = solid Ø10mm
13x14 = 8192 x 16384
M23 = M23 connector
16x14 = 65536 x 16384
Fbus = modular Fieldbus*
CB = integrated CANopen
DN = integrated Devicenet
EC = integrated Ethercat
PB = integrated Profibus
PN = integrated Profinet
*Fieldbus interface modules available for CANopen®, Devicenet, Profibus DP.

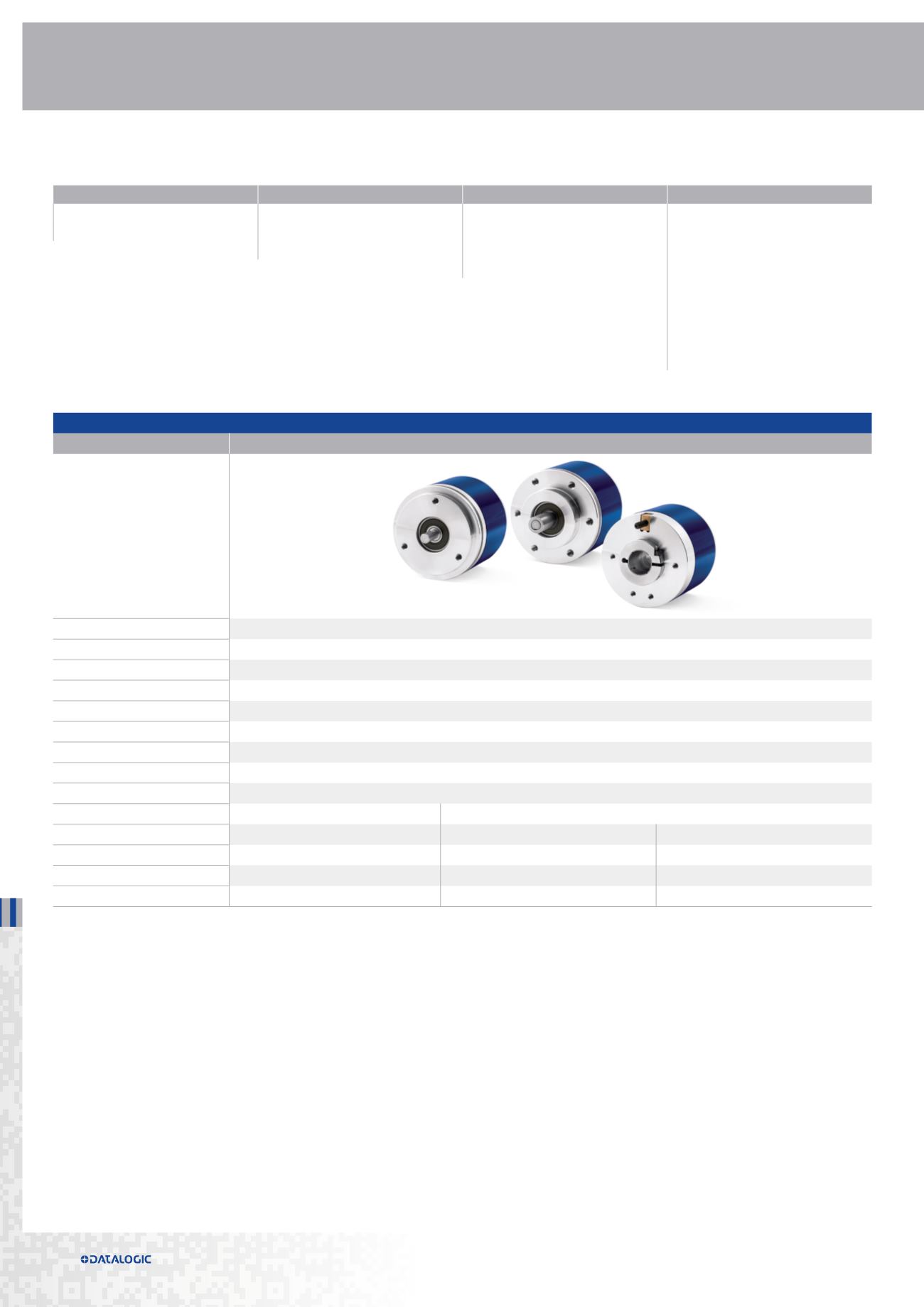

SINGLE-TURN - SSI®
AST58
Power supply
7.5-34 Vdc
Resolution
13 bit = up to 8192 count per revolution (CPR)
Output code
GRAY
Output circuit
Serial Synchronous Interface SSI®
Connection
cable 1.5m or connector M12 or M23
Case diameter
Ø 58 mm
Case material
anticorodal aluminium, UNI EN AW-6082
Flange material
anticorodal aluminium, UNI EN AW-6082
Shaft material
stainless steel, non-magnetic - UNI EN 4305
Shaft type
hollow shaft
solid shaft
Shaft diameter
○
Ø 15 mm
●
Ø 6 mm
●
Ø 10 mm
Single-turn / cable
AST58-H15-13x01-C15
AST58-S06-13x01-C15
AST58-S10-13x01-C15
Single-turn / m12
AST58-H15-13x01-M12
AST58-S06-13x01-M12
AST58-S10-13x01-M12
Single-turn / m23
AST58-H15-13x01-M23
AST58-S06-13x01-M23
AST58-S10-13x01-M23
