-Motion control
-Automated machinery
-Conveyor lines
APPLICATIONS

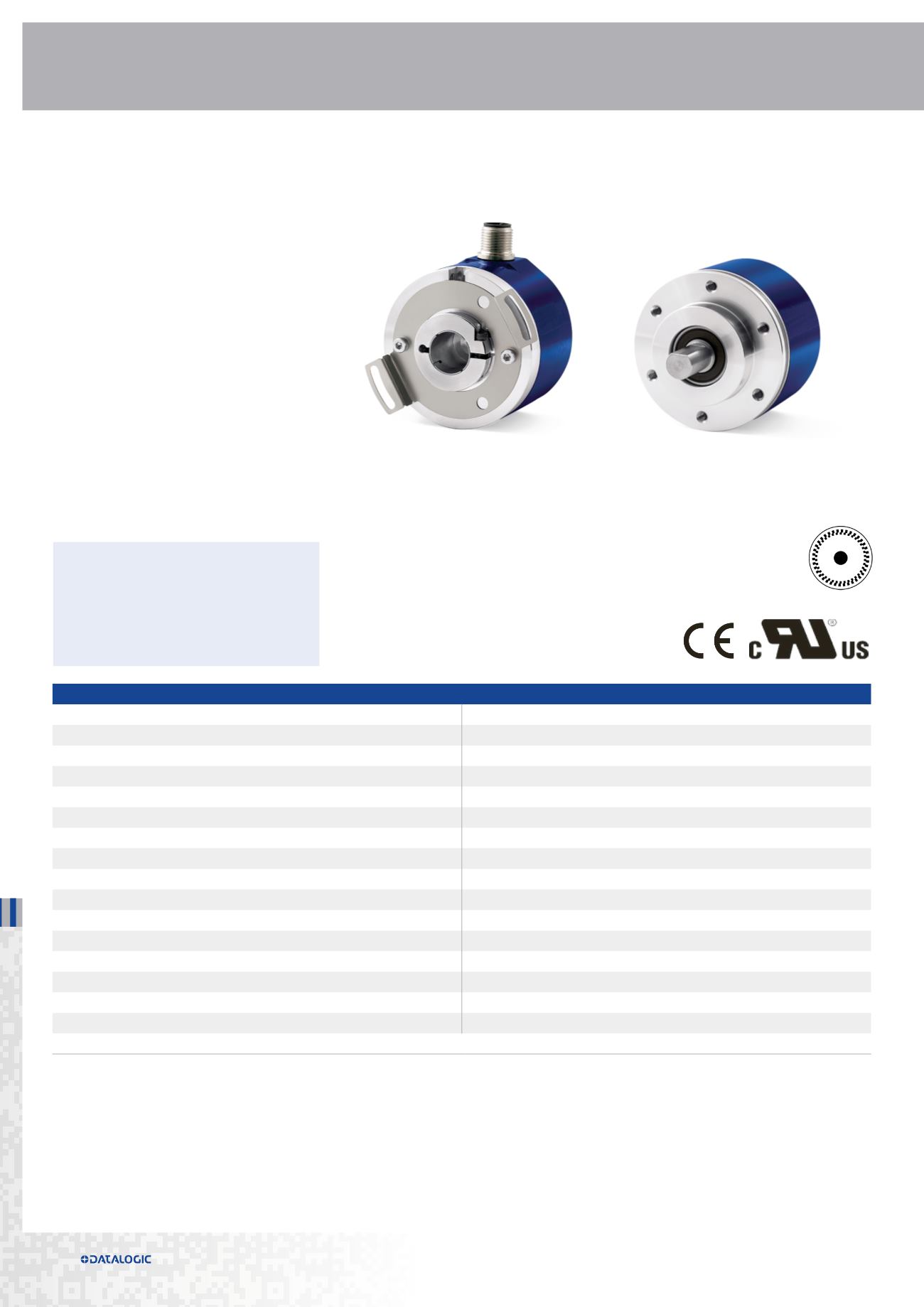

INCREMENTAL ENCODERS
ENC58
Extended Line
• Standard dimension Ø58mm
• Hollow or solid shaft
• High resolution
• Programmable
MECHANICAL AND ENVIRONMENTAL SPECIFICATIONS
Case dimension
Ø 58 mm, depth 54 mm
Shaft dimension
Hollow Ø 14 or 15 mm, solid Ø 6 or 10 mm
Shaft loading (axial and radial)
100 N max.
Shaft rotational speed
6000 rpm continuous, 12000 rpm temporary
Starting torque at 20 °C
≤ 1 Ncm (typ.)
Bearings life
10
9
min.
Weight
0.3 kg (10 oz) ca.
Case material
Aluminium anticorodal UNI EN AW-6082
Flange material
Aluminium anticorodal UNI EN AW-6082
Shaft material
Stainless steel non-magnetic UNI EN 4305
Bearings material
ABEC 5
Mechanical protection
IP64
Shock resistance
100g, 6 ms (MIL STD 202F)
Vibration resistance
10 g, 5-2000 Hz (MIL STD 202F)
Operating temperature
-25 to +85°C (-13 to 185°F)
Storage temperature
-25 to +85°C (-13 to 185°F), 98% R.H. non condensing
Note: specifications subject to changes without prior notice, please refer to the user manual received with the product for mounting, wiring and operation.
