10. Muting
Muting is the temporary automatic suspension of a safety function. When a light curtain is muted, its outputs will
remain ON even if an object is detected in the detection zone.
Because muting suspends a safety function, it must be implemented with all necessary precautions and in compliance
with the machine-specific safety requirements.
T muting is a specific kind of muting that can be used to allow the passage of material through an opening in direction
of the dangerous area or in both directions. L muting can be used only if material exits the dangerous area.
SELECTION GUIDE
Light curtains can be provided with muting arms, with pre-wired sensors detecting the passage of material, or can be
used with external muting sensors.

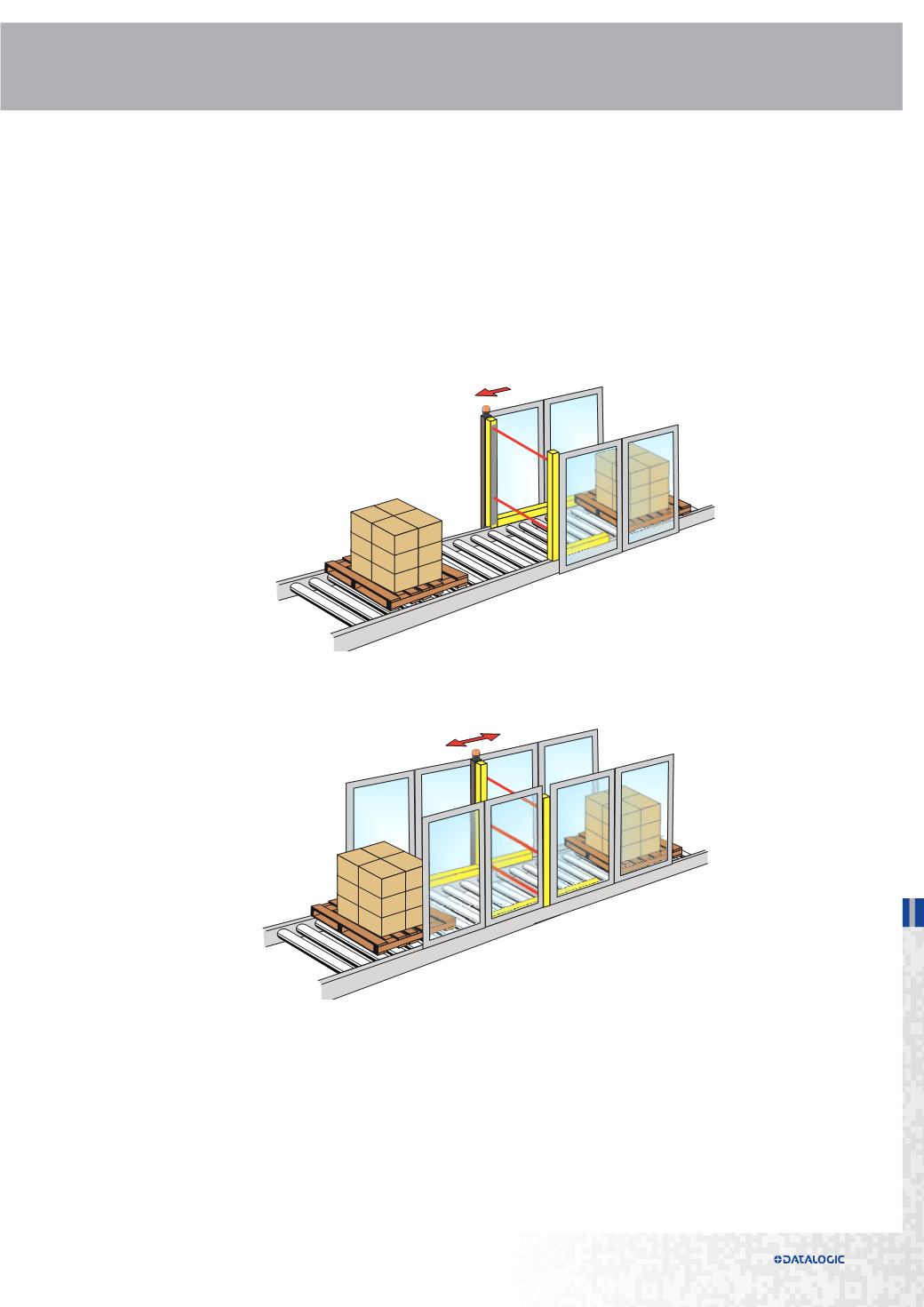

Fig. 7 Safety Light Curtain with Integrated L muting actuator
Fig. 8 Safety Light Curtain with I tegrated T muting actuator
