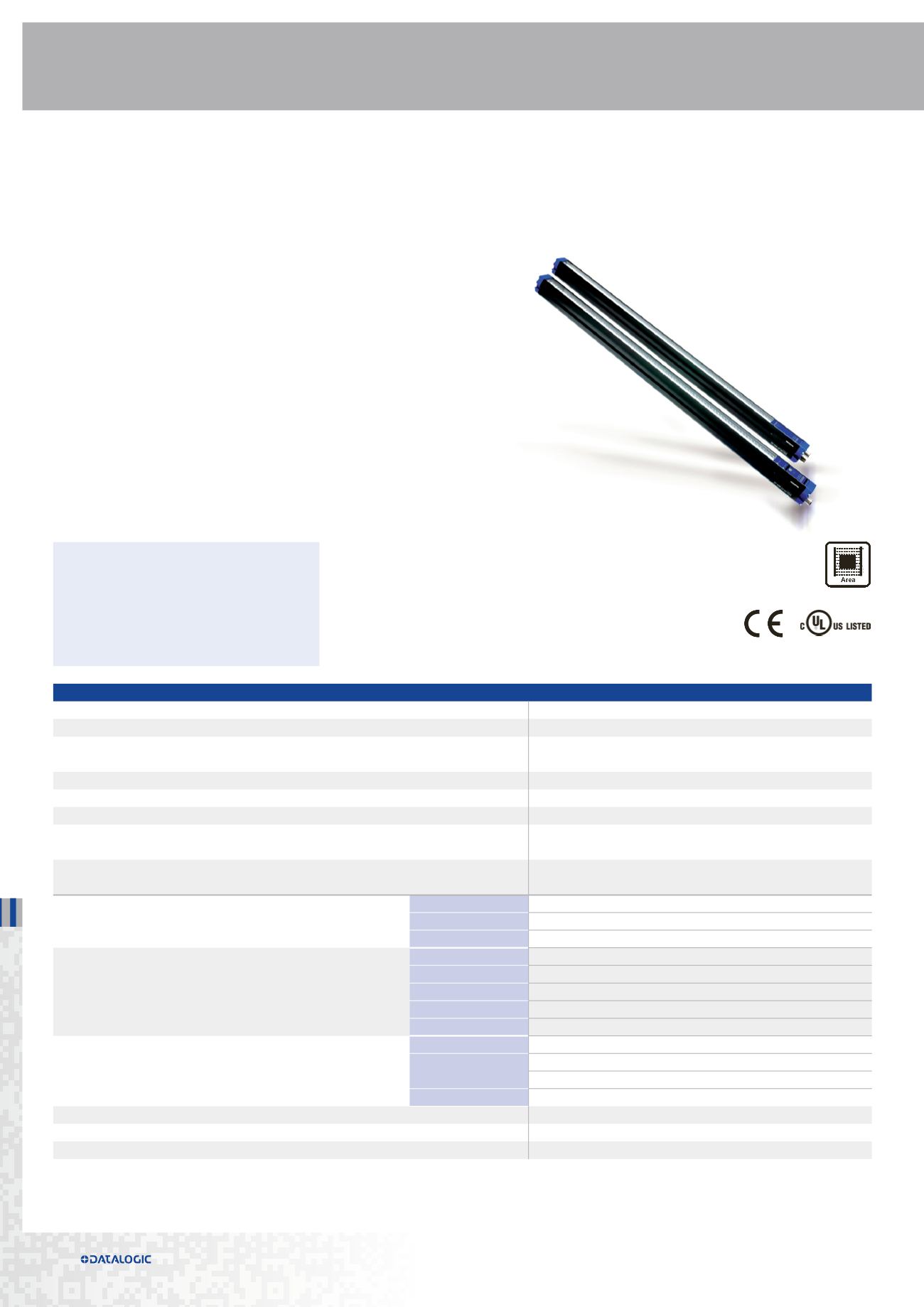

DIMENSION LIGHT GRIDS
-Processing and Packaging machinery
-Food, Cosmetic, Pharmaceutical
-Electronics and mechanical assembling
-Conveyor lines and sorting systems
APPLICATIONS
DS2
AREAscan™ detection and measurement light grids
with serial or Ethernet interface
• 6 or 25 mm digital resolution
• Relative measurementprecision ± 6 mm or ± 22.5 mm
• 150 - 1650 mm controlled heights
• Operating distance up to 10 m
• PNP and 0-10 V Analog output and RS485 or Ethernet interface
DS2
Light array (controlled height)
150…1650 mm
Resolution
6…25 mm
Number of beams
21…231 (res= 6mm)
6…66 (res= 25mm)
Light emission
infrared
Response time
5…90 ms
Interface
serial RS485 or Ethernet
Setting
Dip-switches
Graphic interface
Operating distance
0,3…5 m (res= 6mm)
0,3…10 m (res=25mm)
Power supply
Vdc
10…30 V
Vac
Vac/dc
Output
PNP
•
NPN
NPN/PNP
relay
other
0…10 V Analog output
Connection
cable
connector
M12: 4-poles for TX/8-poles for RX serial vers.
M12: 4-poles for TX/8 + 4 poles for RX ethernet vers.
pig-tail
Approximate dimensions (mm)
35x40x(256…1726)
Housing material
aluminium
Mechanical protection
IP65
