LUMINESCENCE SENSORS
-Packaging and labeling machinery
-Food, Cosmetic and Pharmaceutical
-Ceramic tiles selection and sorting
APPLICATIONS

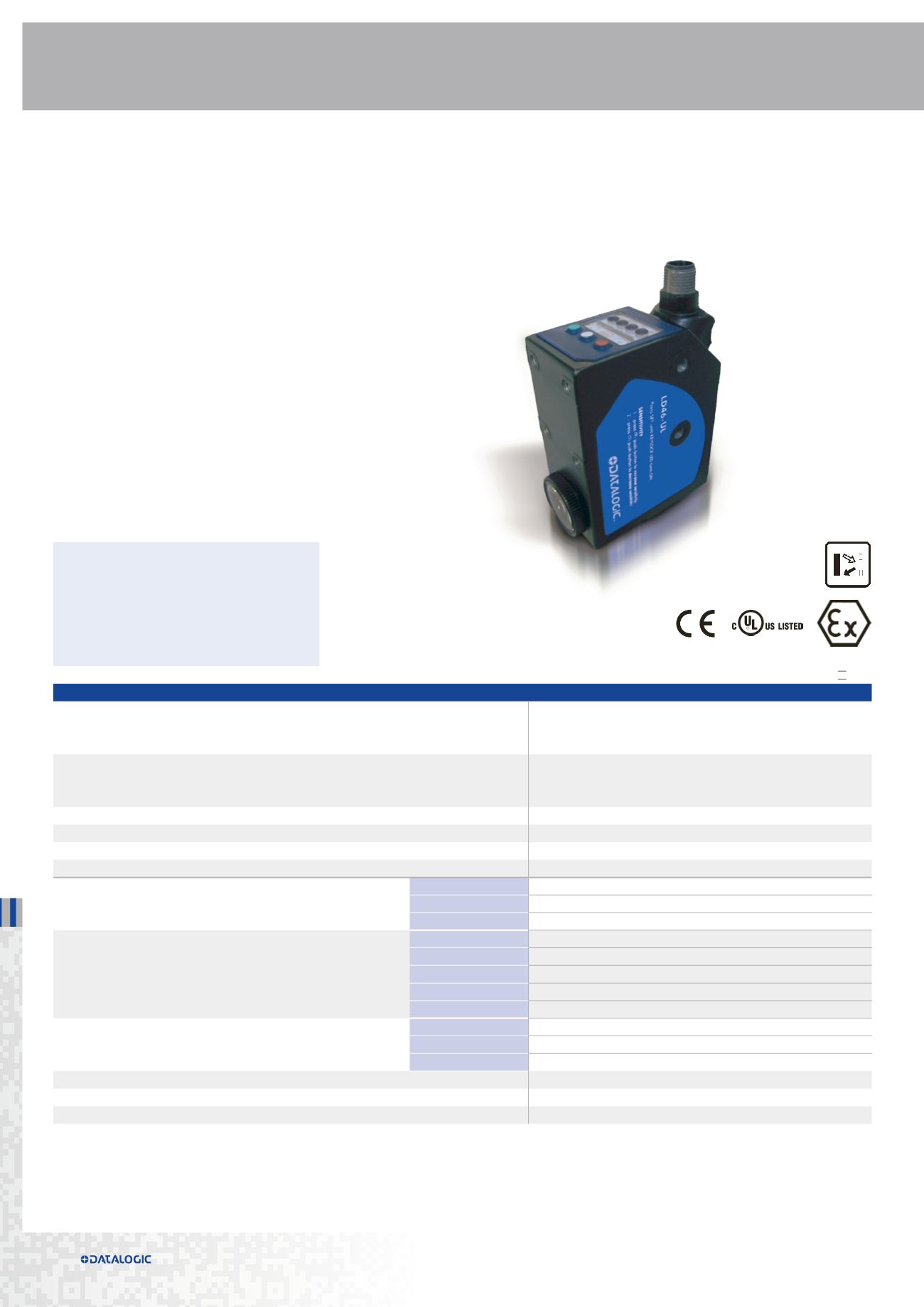

LD46
Luminescence sensor line in standard metal housing
• UV high power LED emission
• High sensitivity on fluorescent marks
• 10 - 50 mm detection distance
• 2 kHz switching frequency
• NPN/PNP and 0-5 V analog outputs
LD46
Luminescence sensor
10…20 mm (LD46-UL-715)
20…40 mm (LD46-UL-755)
30…50 mm (LD46-UL-735)
Spot dimension
2x8 mm at 10 mm
3x11 mm at 24 mm
4x15 mm at 50 mm
Switching frequency
2 kHz
Response Time
250 µs
Light emission
UV-HP LED
Setting
push buttons
Power supply
Vdc
15…30 V
Vac
Vac/dc
Output
PNP
NPN
NPN/PNP
•
relay
other
0…5 V Analog output
Connection
cable
•
connector
•
pig-tail
Approximate dimensions (mm)
31x81x58
Housing material
aluminium
Mechanical protection
IP67
(*) ATEX
II
3DG
