DISTANCE SENSORS
-Automated warehousing
-Trans-elevator and crane positioning
-Automotive assembling lines
-Non-LFT measurement in logistics
APPLICATIONS
S80

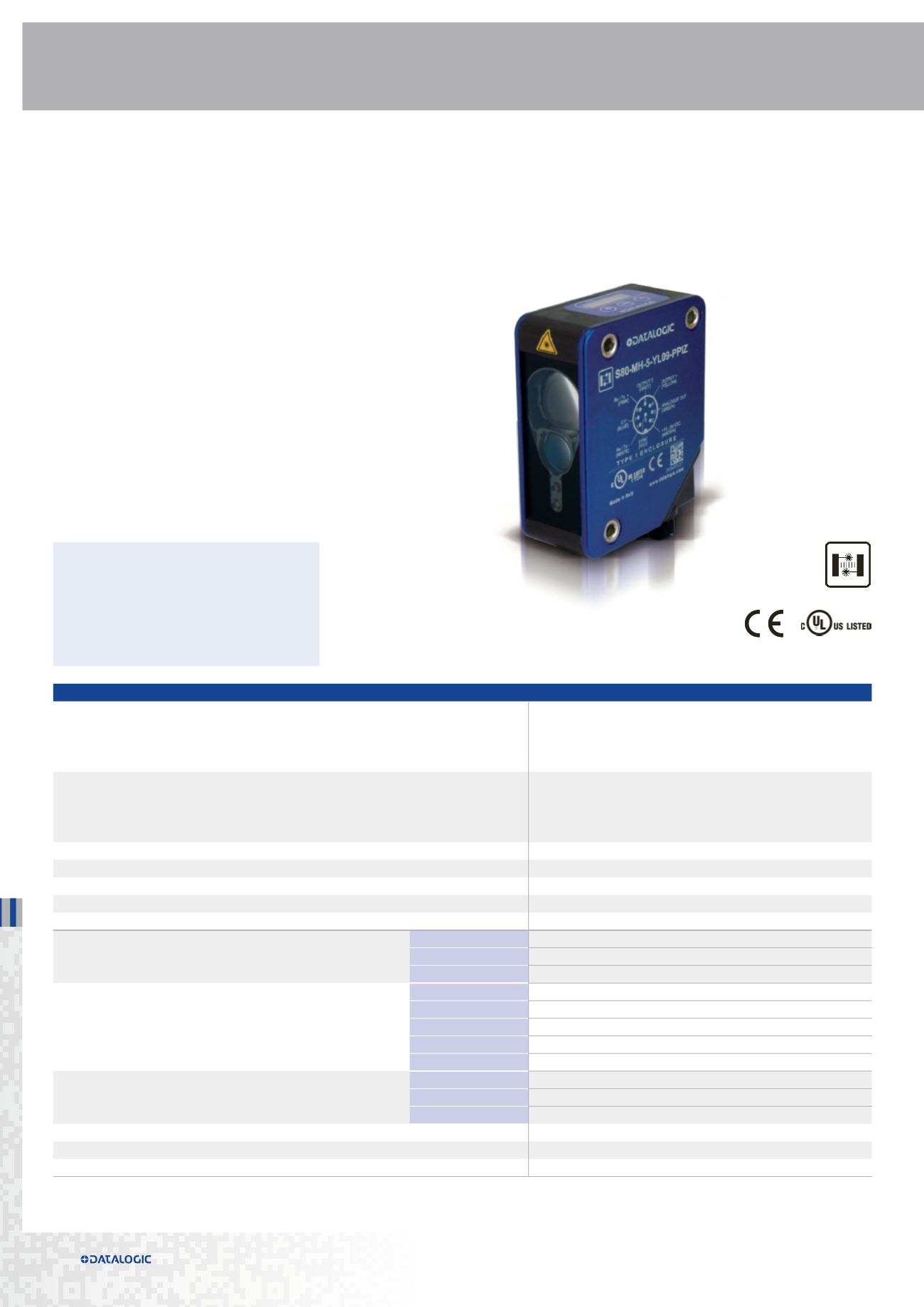

Time Of Flight measurement LASER distance sensor
• Class 2 visible red LASER emission
• Direct proximity measurement from 4 m to 7 m
• 20m to 100m retroflex measurement
• High precision and measurement speed
• PNP/NPN, 4-20mA analog output and RS 485
serial interface
S80
Distance sensor
0,3…4 m (S80-Y0)
0,3…7 m (S80-YL0)
0,3…20,3 m (S80-Y1)
0,3…100,3 m (S80-Y2)
Repeatibility
< 5mm (S80-Y0)
7 mm @ 7m (S80-YL0)
10 mm @20m (S80-Y1)
10 mm @100m (S80-Y2)
Switching frequency
100 Hz (Normal), 500 Hz(Fast)
Light emission
red LASER (class 2)
Response time
5 ms (Normal), 1 ms(Fast)
Serial interface
RS485
Setting
Teach-in
Power supply
Vdc
15…30 V
Vac
Vac/dc
Output
PNP
•
NPN
NPN/PNP
relay
other
4…20 mA Analog output , RS485 serial interface
Connection
cable
connector
M12 8-poles
pig-tail
Approximate dimensions (mm)
34x90x73
Housing material
aluminiunm
Mechanical protection
IP67
