CONTRAST SENSORS
-Packaging and labeling machinery
-Beverage/Food/Cosmetic/
Pharmaceutical industries
-Printing machinery
APPLICATIONS

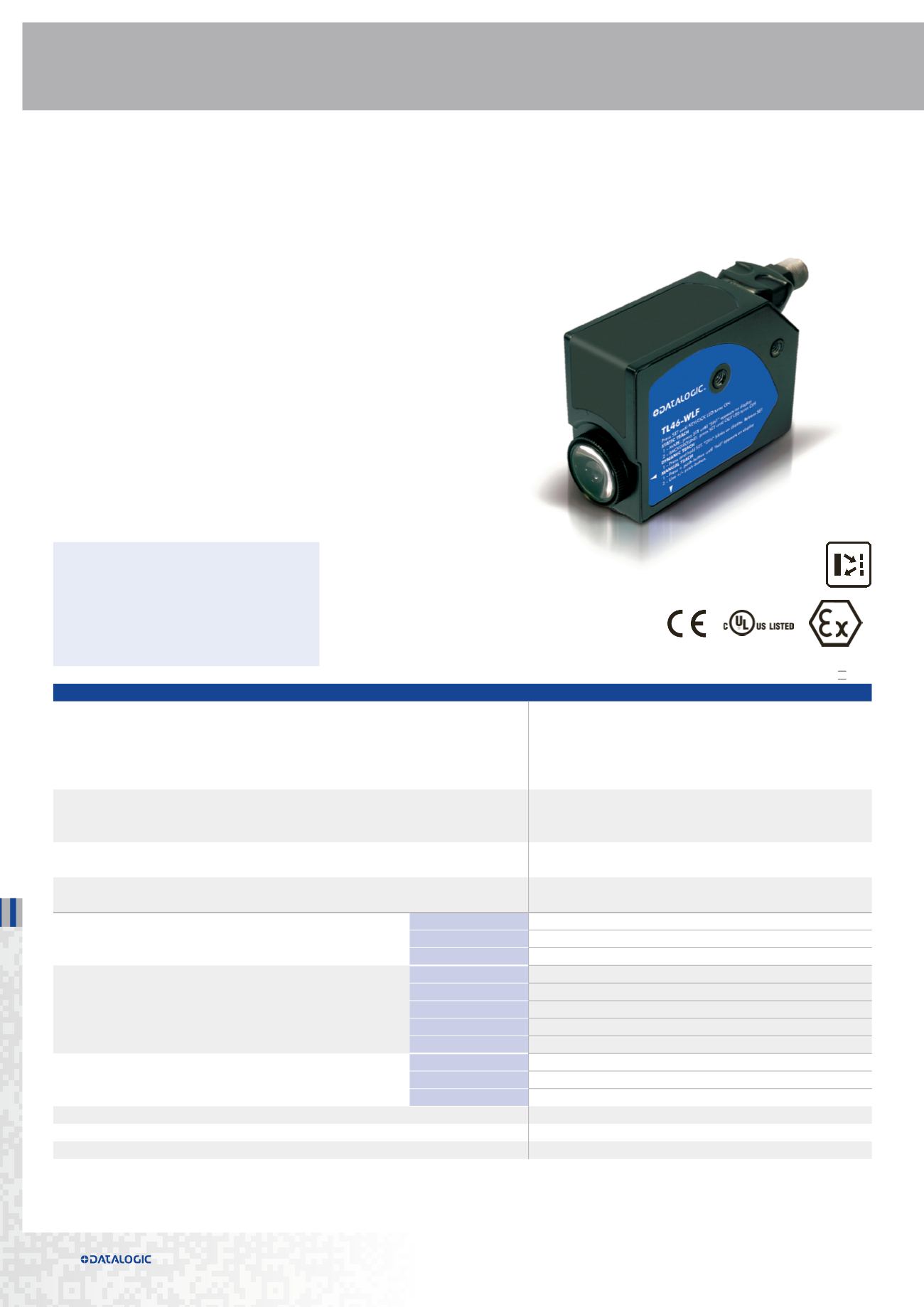

TL46
High performance contrast sensor for colored registration mark detection
• Wide-spectrum RGB or white LED emission
• 3 different models: basic, standard and enhanced
• Automatic, manual and dynamic settings
• 15, 20 or 30 kHz switching frequencies
• NPN/PNP and analog outputs
• Standard mounting, M12 connector rotatable to 5 positions
TL46
Contrast sensor
9 ±3 mm
18 mm (Lens No.18 glass)
22 mm (Lens No.22 glass)
28 mm (Lens No.28 glass)
40 mm (Lens No.40 glass)
Switching frequency
15 kHz
20 kHz
30 kHZ
Light emission
RGB LED
white LED
Setting
push buttons (Teach-in)
trimmer
Power supply
Vdc
10…30 V
Vac
Vac/dc
Output
PNP
NPN
NPN/PNP
•
relay
other
0…5V Analog Output
Connection
cable
connector
•
pig-tail
Approximate dimensions (mm)
31x81x58
Housing material
Aluminium
Mechanical protection
IP67
(*) ATEX
II
3DG
(*)
