ABSOLUTE ENCODERS
Model selection
INTEGRATED FIELDBUS MODELS
SHAFT
CONNECTION
INTERFACE
RESOLUTION
MODEL
ORDER NO.
Solid shaft Ø10 mm
M12
Canopen
13x12 bit
AMT58-S10-13x12-CB
95B081630
Hollow shaft Ø15 mm
M12
Canopen
13x12 bit
AMT58-H15-13x12-CB
95B081640
Solid shaft Ø10 mm
M12
Devicenet
13x12 bit
AMT58-S10-13x12-DN
95B081650
Hollow shaft Ø15 mm
M12
Devicenet
13x12 bit
AMT58-H15-13x12-DN
95B081660
Solid shaft Ø10 mm
M12
Ethercat
13x14 bit
AMT58-S10-13x14-EC
95B081220
Hollow shaft Ø15 mm
M12
Ethercat
13x14 bit
AMT58-H15-13x14-EC
95B081680
Solid shaft Ø10 mm
M12
Profibus
13x12 bit
AMT58-S10-13x12-PB
95B081610
Hollow shaft Ø15 mm
M12
Profibus
13x12 bit
AMT58-H15-13x12-PB
95B081620
Solid shaft Ø10 mm
M12
Profinet
13x14 bit
AMT58-S10-13x14-PN
95B081210
Hollow shaft Ø15 mm
M12
Profinet
13x14 bit
AMT58-H15-13x14-PN
95B081670
ACCESSORIES
DESCRIPTION
MODEL
ORDER NO.
Flexible Aluminium coupling Ø6 mm
FAC06-06
95B081300
Flexible Aluminium coupling Ø10 mm
FAC10-10
95B081310
Flexible standard plastic coupling Ø6 mm
FBC06-06
95B081320
Flexible standard plastic coupling Ø10 mm
FBC10-10
95B081330
Encoder reducing sleeve Ø15 - 6 mm
RS15-06
95B081340
Encoder reducing sleeve Ø15 - 8 mm
RS15-08
95B081350
Encoder reducing sleeve Ø15 - 10 mm
RS15-10
95B081360
Encoder reducing sleeve Ø15 - 11 mm
RS15-11
95B081370
Encoder reducing sleeve Ø15 - 12 mm
RS15-12
95B081380
Encoder reducing sleeve Ø15 - 9.52 mm (3/8")
RS15-3/8
95B081390
Ø58 Encoder fixing clamps (3 kits)
ST-58-KIT
95B081400
Ø58 Encoder mounting bell
ST-58-BELL
95B081410
Ø58 Encoder mounting L-bracket
ST-58-BRKT
95B081420
Ø58 Encoder mounting square flange
ST-58-FLNG
95B081430
Canopen/Devicenet 2 connectors kit
CN-M12-CB/DN-KIT
95B081690
Canopen/Devicenet output cable
CN-M12-5P-5M-CB/DN-O
95B081700
Canopen/Devicenet input cable
CN-M12-5P-5M-CB/DN-I
95B081710
Profibus 3 connectors kit
CN-M12-PBUS-KIT
95B081720
Ecat/Pbus/Pnet power supply cable
CN-M12-4P-5M-BUS-PS
95B081730
Profibus input cable
CN-M12-5P-5M-PBUS-I
95B081740
Profibus output cable
CN-M12-5P-5M-PBUS-O
95B081750
Ethercat/Profinet programming cable
CN-M12-4P-5M-EC/PN-RJ
95B081770
Ethercat/Profinet input-output cable
CN-M12-4P-5M-EC/PN-IO
95B081780
Ethercat/Profinet input-output plug
CN-M12-4P-00-EC/PN-IO
95B081790

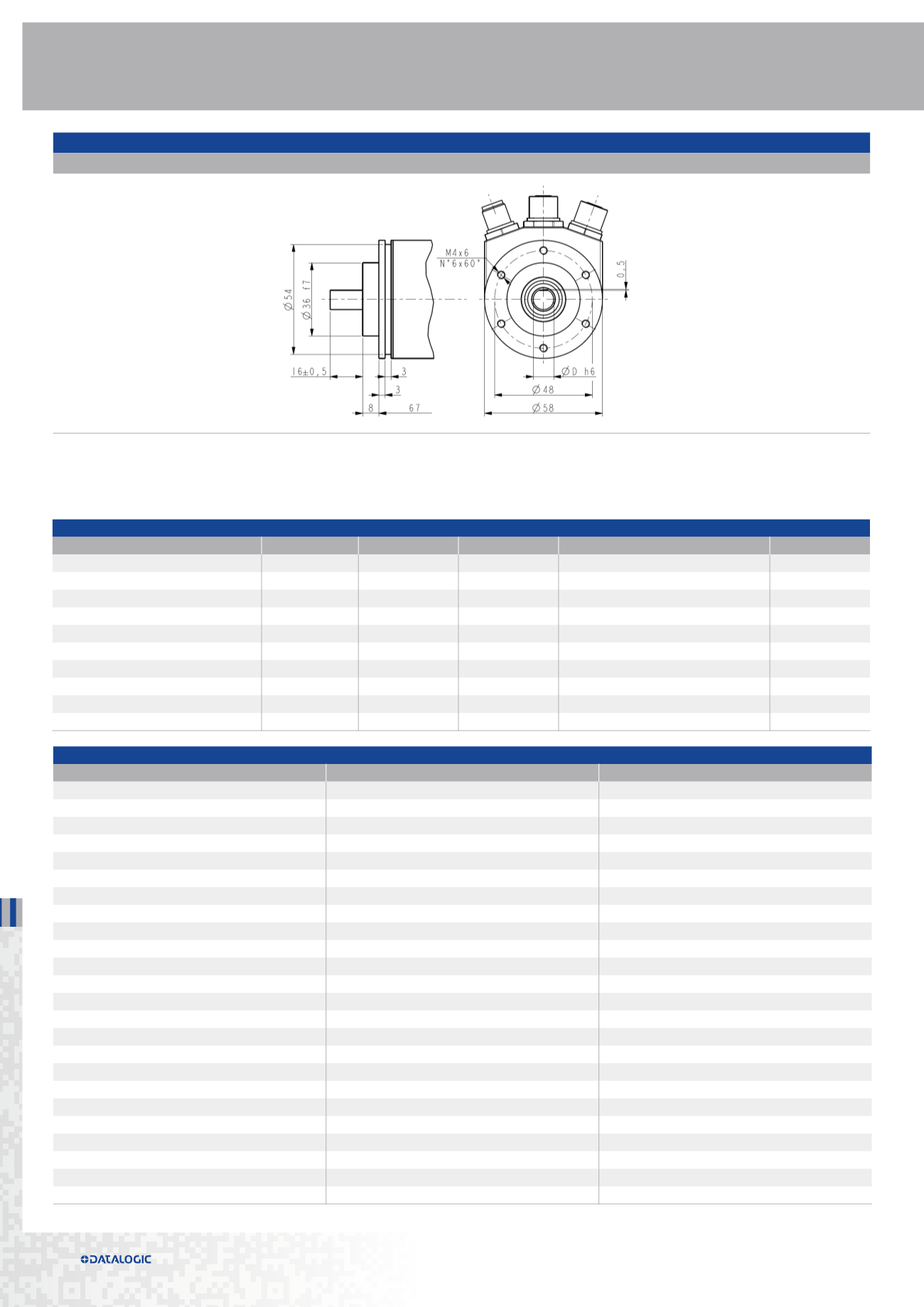

DIMENSIONS
ENCODER WITH INTEGRATED FIELDBUS INTERFACE
