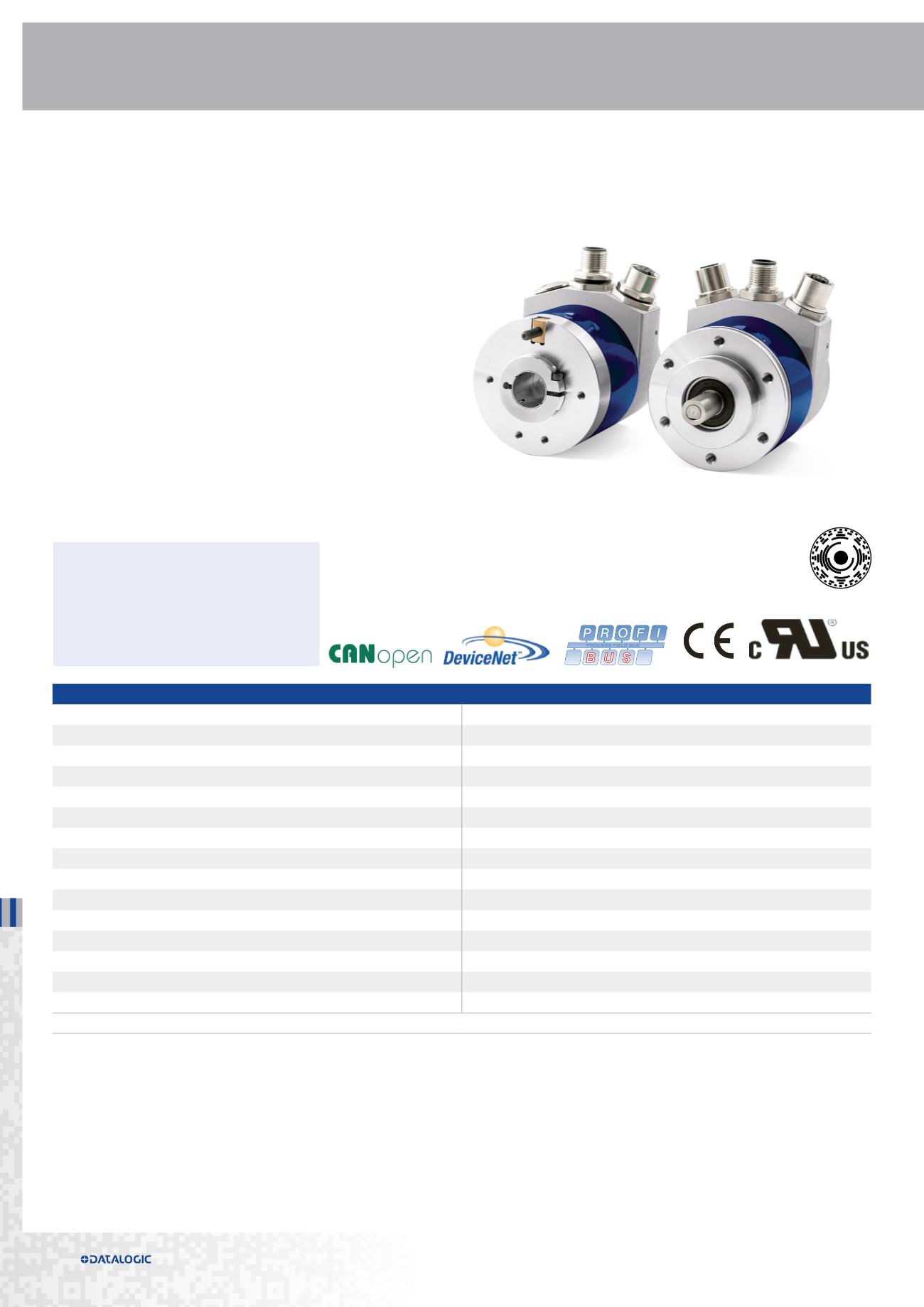

AMT58-Modular Fieldbus
Multi-turn with Modular Fieldbus interface
• Standard dimension Ø58mm
• Hollow or solid shaft
• Extremely high accuracy
• Modular Fieldbus interface
MECHANICAL AND ENVIRONMENTAL SPECIFICATIONS
Case dimension
Ø 58 mm, depth 71 mm (encoder + interface module)
Shaft dimension
Hollow Ø 15 mm, solid Ø 6 or 10 mm
Shaft loading (axial and radial)
100 N max.
Shaft rotational speed
9000 rpm continuous, 12000 rpm temporary
Bearings life
400x10
6
rev. min. (10
9
rev. min. with shaft loading of 20 N max.)
Weight
0.3 kg (10 oz) ca.
Case material
Aluminium anticorodal UNI EN AW-6082
Flange material
Aluminium anticorodal UNI EN AW-6082
Shaft material
Stainless steel non-magnetic UNI EN 4305
Bearings material
ABEC 5
Mechanical protection
IP65
Shock resistance
100g, 6 ms (MIL STD 202F)
Vibration resistance
10 g, 5-2000 Hz (MIL STD 202F)
Operating temperature
-25 to +85°C (-13 to 185°F)
Storage temperature
-40 to +100°C (-40 to 212°F), 98% R.H. non condensing
Note: specifications subject to changes without prior notice, please refer to the user manual received with the product for mounting, wiring and operation.
