ABSOLUTE ENCODERS

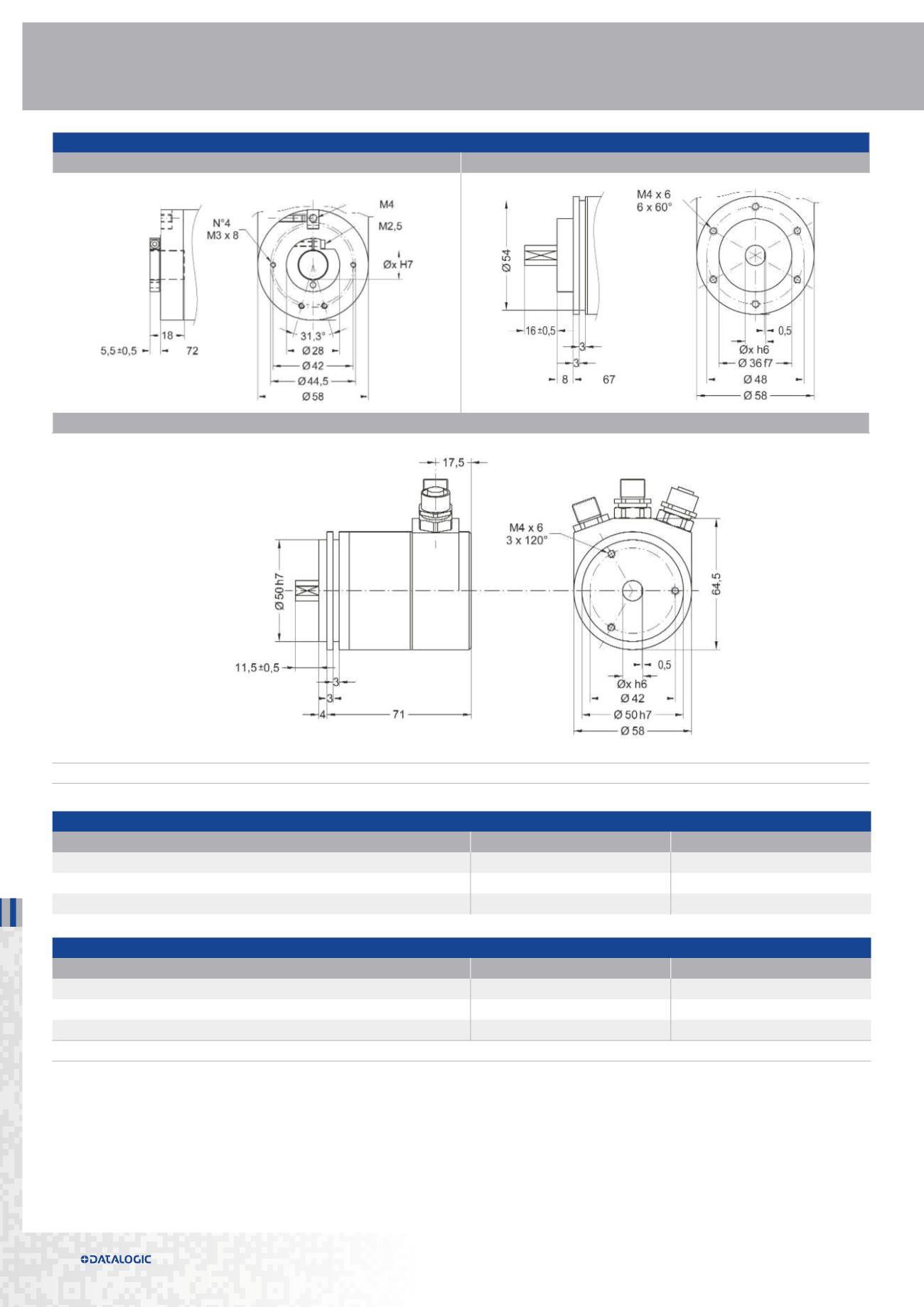

DIMENSIONS
Hollow shaft VERSION SOLID SHAFT VERSION
ENCODER WITH FIELDBUS INTERFACE MODULE
*The encoder base unit “A” must be connected to the required Fieldbus interface module “B”.
www.lika.it
HS58/HM58 FB HS58S/HM58S FB
HSC58/HMC58 FB
6 mm
8 mm
9.52 mm / 3/8”
10 mm
12 mm
14 mm*
15 mm*
6
8
P9
10
12
14
15
Ø ALBERO
XX XXXXX XX /
262144 inf./giro (versione HS)
65536 inf./giro x 16384 giri (versione HM)
RISOLUZIONE
FB -
CODICE DI ORDINAZIONE VERSIONE MONOGIRO E MULTIGIRO
HS58 - HS58S - HSC58
HSC59 - HSC60
HM58 - HM58S - HMC58
HMC59 - HMC60
SERIE
*solo HSCxx, HMCxx
HSC59/HMC59 FB HSC60/HMC60 FB
BR1-xx
18
16/16384
/Sxxx
versione speciale
HS58/HM58 FB
HSC58/HMC58 FB
XX XXXXX XX / FB -
CODICE DI ORDINAZIONE VERSIONE MONOGIRO E MULTIGIRO
HSC59/HMC59 FB
/Sxxx
A* B*
MULTI-TURN BASE MODELS FOR FIELDBUS MODULES
SHAFT MODEL ORDER NO.
Encoder base unit with hollow shaft ○ Ø15 mm AMT58-H15-16x14-FBUS 95B081170
Encoder base unit with solid shaft ● Ø6 mm AMT58-S06-16x14-FBUS 95B081150
Encoder base unit with solid shaft ● Ø10 mm AMT58-S10-16x14-FBUS 95B081160
FIELDBUS INTERFACE MODULES
FIELDBUS MODULE MODEL ORDER NO.
CANopen® interface module* AMT58-FBUS-CB 95B081190
Devicenet interface module* AMT58-FBUS-DN 95B081200
Profibus DP interface module* AMT58-FBUS-PB 95B081180
* The encoder base unit must be ordered with the Fieldbus interface module
HS58/HM58 FB HS58S/HM58S FB
HSC58/HMC58 FB
6 mm
8 mm
9.52 mm / 3/8”
10 mm
12 mm
14 mm*
15 mm*
6
8
P9
10
12
14
15
Ø ALBERO
XX XXXXX XX /
262144 inf./giro (versione HS)
65536 inf./giro x 16384 giri (versione HM)
RISOLUZIONE
FB -
CODICE DI ORDINAZIONE VERSIONE MONOGIRO E MULTIGIRO
HS58 - HS58S - HSC58
HSC59 - HSC60
HM58 - HM58S - HMC58
HMC59 - HMC60
SERIE
*solo HSCxx, HMCxx
HSC59/HMC59 FB HSC60/HMC60 FB
Boccola di riduzione da ø 15 mm a: ø 6, 8, 9.52, 10, 11, 12 mm
BR1-xx
18
16/16384
/Sxxx
versione speciale
