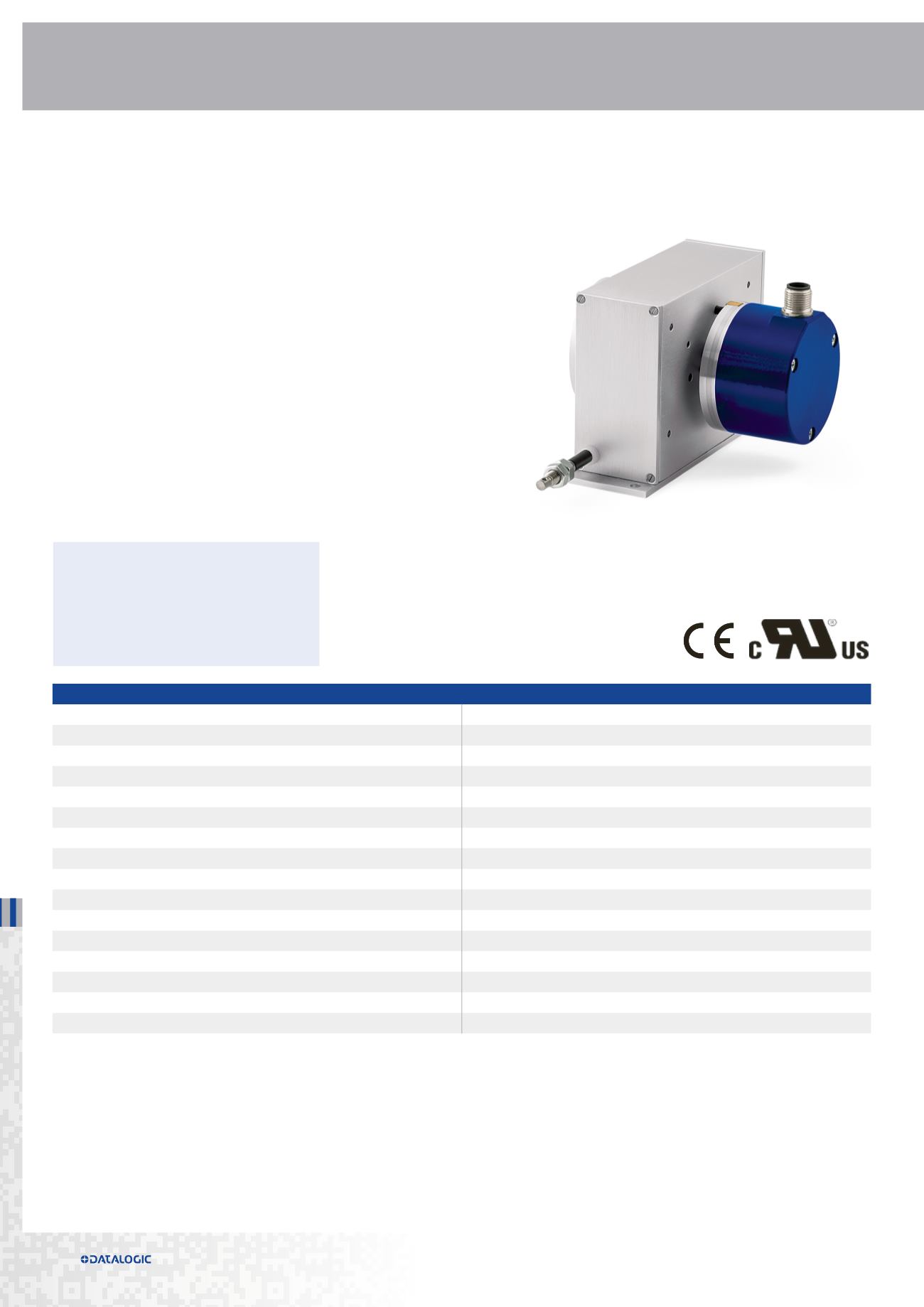

LINEAR MEASUREMENT ACCESSORIES
-Length measurement and positioning
APPLICATION
DW
DrawWire
The draw wire accessory is used with the encoder for
length measurement and position control applications.
The accuracy is given by the ratio between the draw wire
drum circumference and the encoder resolution, e.g.:
204.8 mm / 8192 CPR = 0.025 mm per code
200 mm / 10000 PPR = 0.02 mm per pulse
MECHANICAL AND ENVIRONMENTAL SPECIFICATIONS
Stroke per turn (absolute encoder)
204.8 mm
Stroke per turn (integral encoder)
200 mm
Wire retraction force
5 ÷ 15 N
Measuring wire length
5000 mm
Measuring speed
3 m/sec max.
Repeat accuracy
± 0.15 mm
Wire material
Stainless steel non-magnetic UNI EN 4305
Housing material
Aluminium anticorodal UNI EN AW-6082
Mechanical protection
IP64
Weight
600 gr. (without encoder)
Operating temperature
-25 to +85°C (-13 to 185°F)
Storage temperature
-25 to +85°C (-13 to 185°F), 98% R.H. non condensing
Shock resistance
100g, 6 ms (MIL STD 202F)
Vibration resistance
10 g, 5-2000 Hz (MIL STD 202F)
Operating temperature
-25 to +85°C (-13 to 185°F)
Storage temperature
-40 to +100°C (-40 to 212°F), 98% R.H. non condensing
