ELECTRICAL SPECIFICATIONS
Resolution
16 x 14 bit = up to 65536 CPR x 16384 turns
Counting frequency
220 kHz max.
Accuracy
±0.007°
Output interface
CANopen®DS310, DS406, DeviceNet, Profibus DP V1
Power supply
7.5 – 34 Vdc
Consumption
2.2 W
Input functions
Counting direction and Zero setting/Preset
Connection
connector M12
Protection
Polarity inversion and short circuit
EMC
EN50081-2, EN50082-2
Light source
Ga-Al diodes
Optoelectronic life
> 100.000 hrs
ELECTRICAL CONNECTIONS

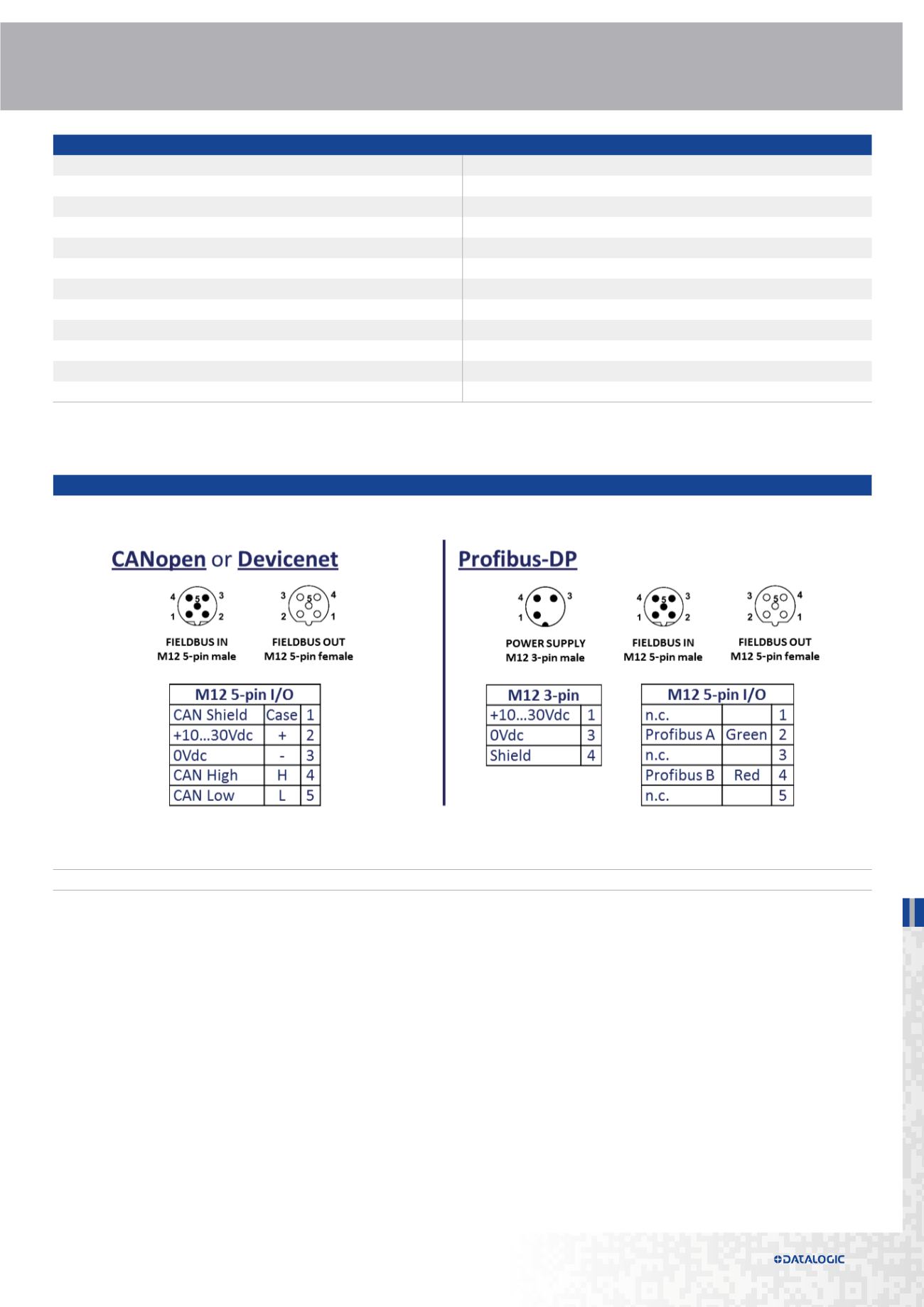

NOTE: view and pin-out of the connectors on the encoder side
