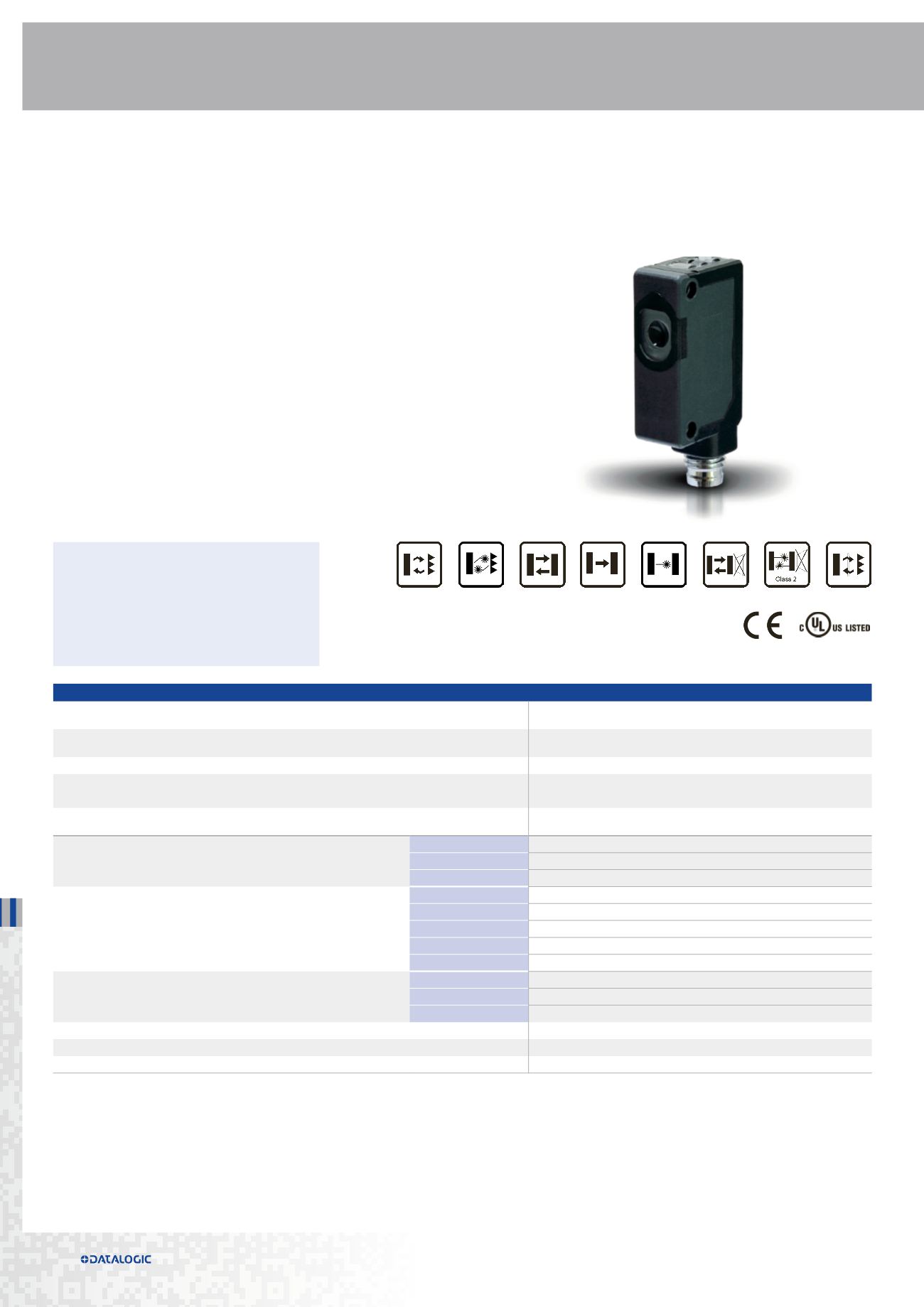

S3Z
Advanced line of miniature Asian style of photoelectric sensors
• 50-250 mm background suppression
• 0.7 m proximity, 15 cm with narrow beam
• 4 m polarized retroreflective
• 15 m through beam
• Standard 3-wire output configuration
S3Z
Through beam
0…15 m
0…30 m (class 1 LASER)
Polarized retroreflective
0.05…4 m
0,3…10 m (class 1 LASER)
Retroreflective for transparent (on R2 reflector)
0…2 m
Diffuse proximity
0…70 cm
5…15 cm (narrow beam)
Background suppression
5…25 cm
40…300 mm (class 1 LASER)
Power supply
Vdc
10…30 V
Vac
Vac/dc
Output
PNP
•
NPN
•
NPN/PNP
relay
other
Connection
cable
•
connector
•
pig-tail
Approximate dimensions (mm)
11x31x19
Housing material
PC/PBT
Mechanical protection
IP67
