72
R3,3 n°8 asole
R4,5n°4asole
89
95
M6
±45°
L2
L1
L3
85
54
108
Mirrors

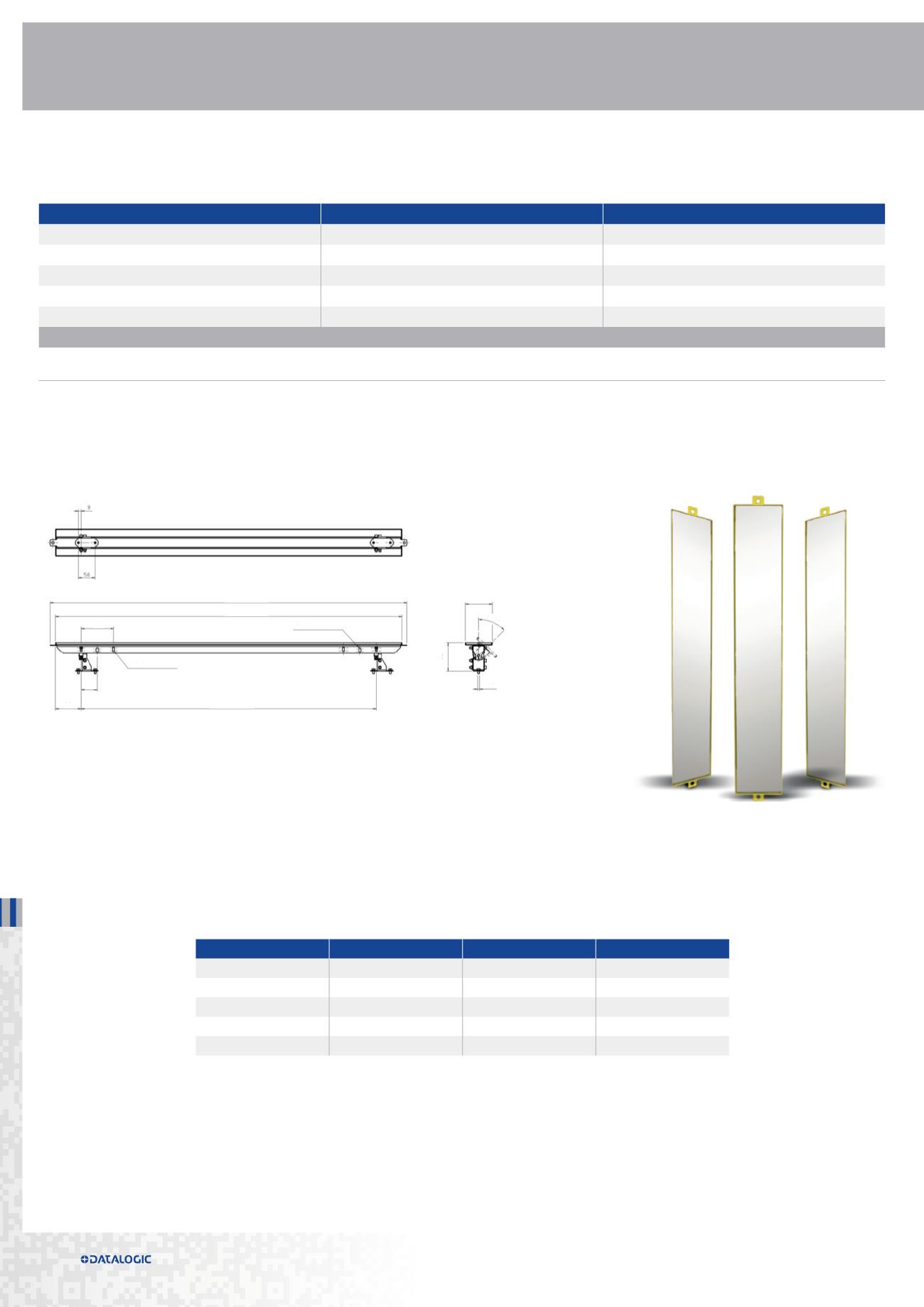

Mirrors for finger and hand protection safety light curtains (SG-DM)
MODEL
DESCRIPTION
ORDER NUMBER
SG-DM 600
Deviating mirror version 600 mm
95ASE1680
SG-DM 900
Deviating mirror version 900 mm
95ASE1690
SG-DM 1200
Deviating mirror version 1200 mm
95ASE1700
SG-DM 1650
Deviating mirror version 1650 mm
95ASE1710
SG-DM 1900
Deviating mirror version 1900 mm
95ASE1720
NOTES
1. To mount these mirrors into the stands SG-PSB, order ST-PS-DM mounting kit
2. To mount these mirrors to columns SE-S, order one ST-DM mounting kit
L1 (mm)
L2 (mm)
L3 (mm)
SG -DM 600
545
376
580
SG -DM 900
845
676
880
SG -DM 1200
1145
976
1180
SG -DM 1650
1595
1426
1630
SG -DM 1900
1845
1676
1880
The image includes the mirror SG-DM and two bracket mounting kits ST-DM.
ACCESSORIES
�
MIRRORS AND STANDS
